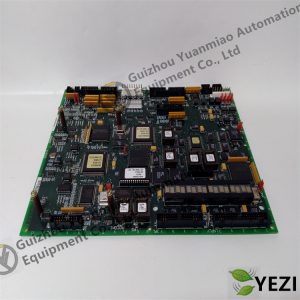

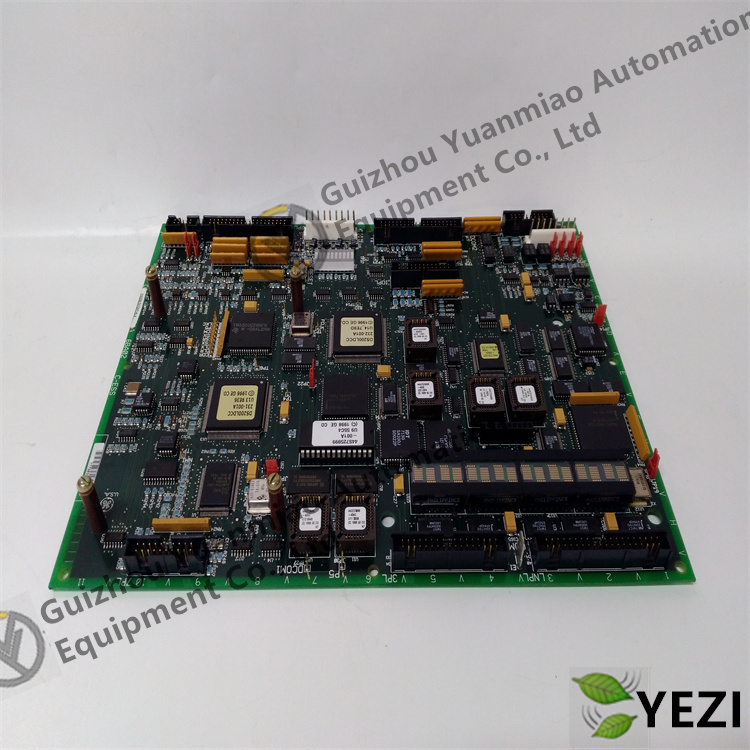

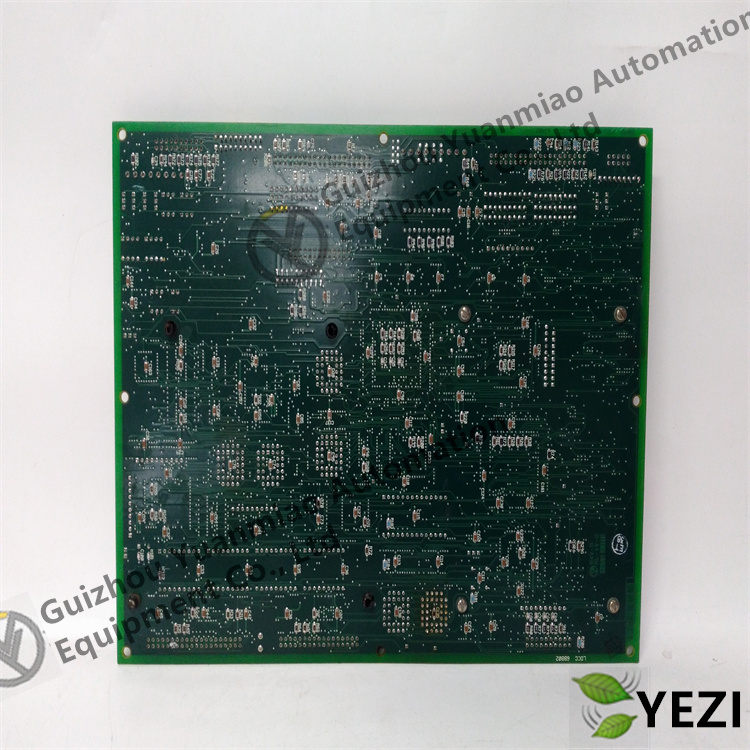

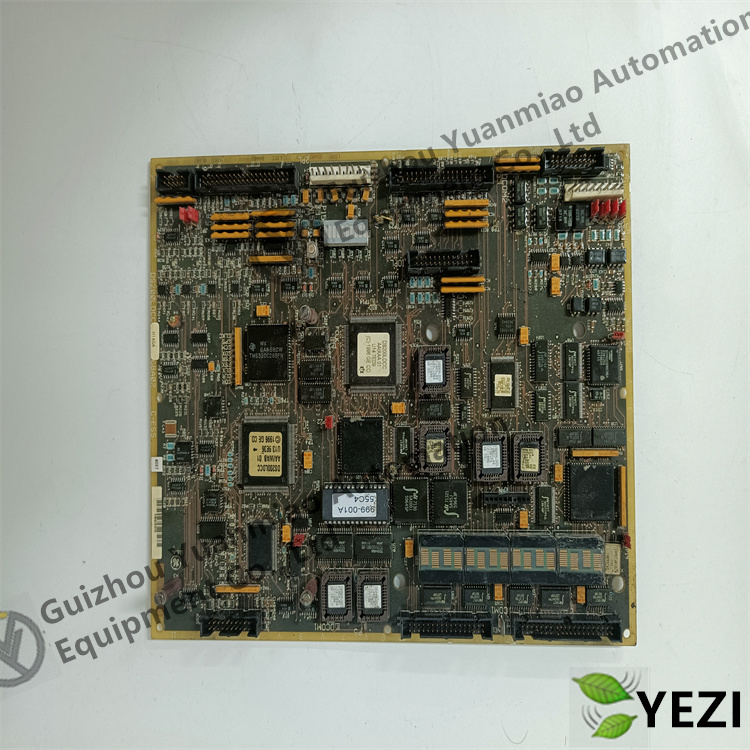

DS200LDCCH1AGA Drive control/LAN communication board
Attention: Due to the large number of products from our company, the pictures cannot match each other. Please contact me to confirm the actual product!
DS200LDCCH1AGA is a drive control/LAN communication board from General Electric (GE). The following is its detailed information:
Basic information
Part number: DS200LDCCH1AGA
Series: Mark V DS200
Product Type: Driver Control/LAN Communication Board
Functional Features
Drive Control Function: Provides the main drive and I/O control functions for GE’s Directo Matic 2000 drives and exciters, controlling motor operation to ensure it operates as required in industrial processes, and has multi-channel control capability to simultaneously monitor and control multiple motors or devices.
Communication function: Supports multiple communication interfaces, such as Ethernet, serial ports (RS-232, RS-485), Modbus, etc., for data exchange with other devices and control systems; There is a LAN control processor (LCP) on the board that can accept five different bus types for feeding to the driver.
Processing capability: Includes four onboard microprocessors, in addition to LCP, there is also a Driver Control Processor (DCP) for processing analog and digital I/O conversions, as well as controlling and converting peripheral I/O devices such as encoders and timers; The motor control processor (MCP) processes the digital I/O sent to the driver; If the DCP processing capability is insufficient, the Collaborative Motion Processor (CMP) can provide additional processing capability.
Programming and diagnosis: equipped with an alphanumeric keyboard for system programming and diagnosis; There are six flash PROMs responsible for storing configuration data and can be reprogrammed on-site as needed; There is also a reset button on the board for diagnosing and responding to common functional faults.
