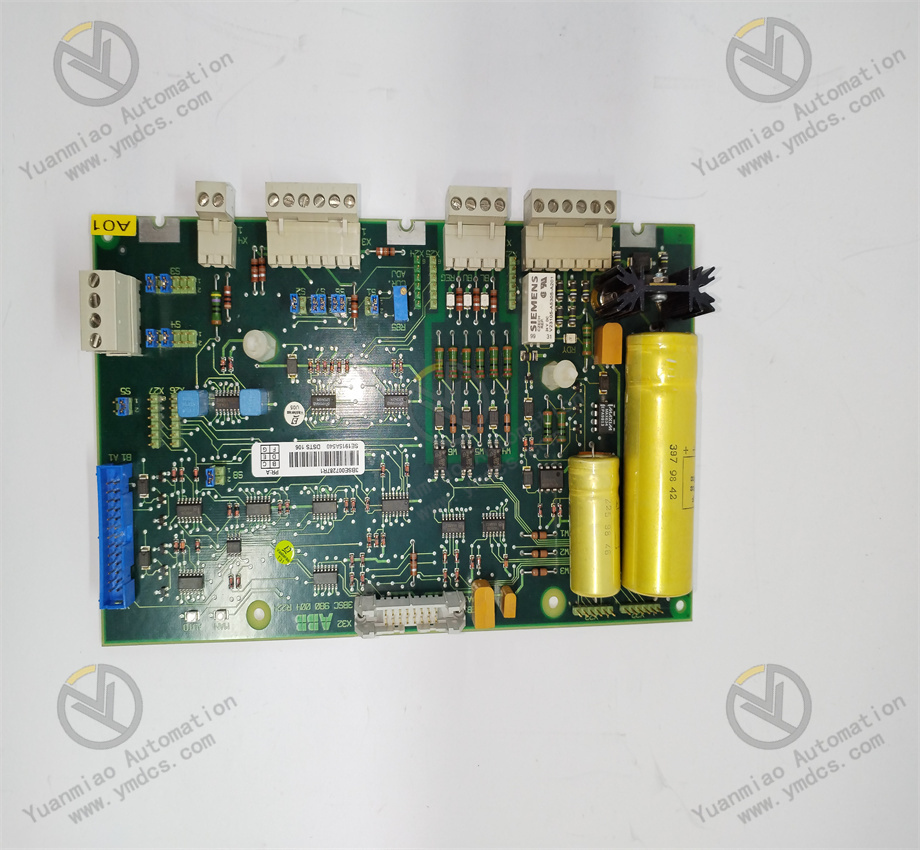

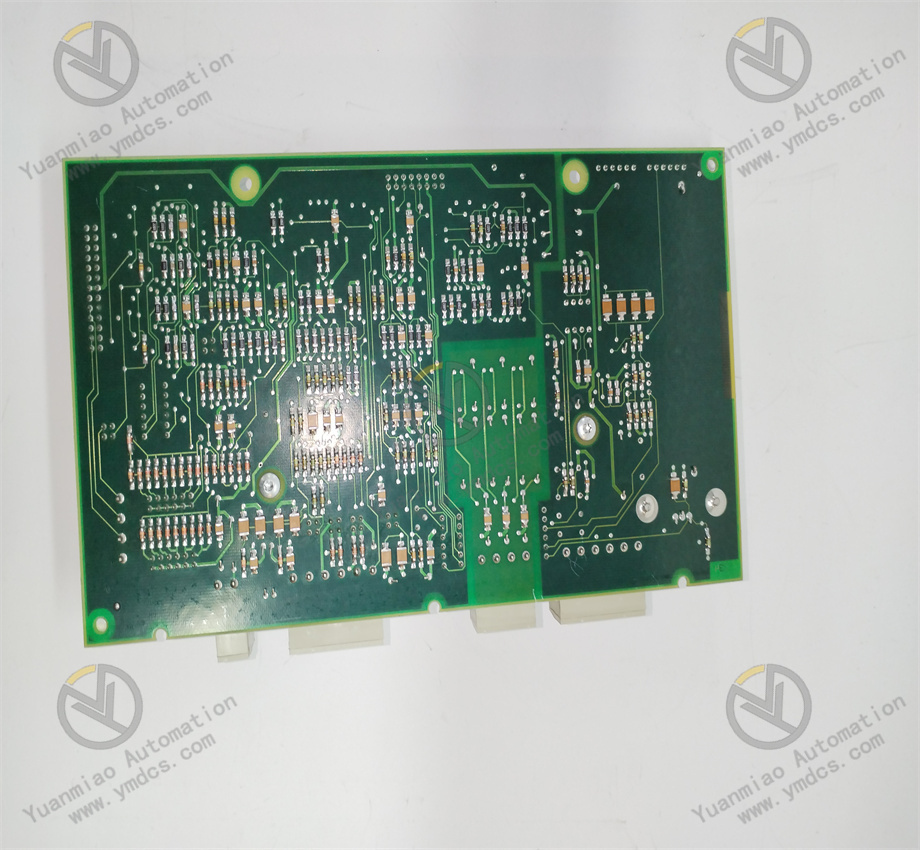

ABB DSTS106 3BSE007287R1 DS

1. Basic Information

• Model: DSTS106
• Part Number: 3BSE007287R1
• Brand: ABB
• Type: Trigger Pulse Generator Card (with backup regulator)
• System Compatibility: ABB Advant Master, Advant OCS, Advant Controller 110/160
• Origin: Sweden
• Warranty: 12 months
• Certifications: CE, RoHS (exempt)

2. Technical Specifications

• Rated Voltage: 24 V DC
• Output Current: Up to 3 A
• Operating Temperature: -20°C to +70°C
• Dimensions: 252 × 153 × 36 mm
• Weight: 0.3 kg
• Protection Level: IP20
• Communication: Internal bus interface for ABB DCS backplane

3. Core Functions & Features

• Precise Trigger Pulse Generation

  Generates accurate trigger pulses for thyristors, inverters, and power converters, enabling precise control of power output.
• Built-in Backup Regulator

  Integrated backup regulation circuit ensures stable operation even in case of primary control failure, enhancing system reliability.
• High Anti-Interference & Industrial Grade

  Designed for harsh industrial environments (dust, vibration, temperature fluctuation) with strong EMC performance.
• Modular & Hot-Swappable

  Standard card format, plug-and-play, easy installation, replacement, and maintenance in DCS cabinets.
• Real-Time Monitoring & Fault Diagnosis

  Built-in status monitoring and self-diagnosis functions for quick fault detection and troubleshooting.

4. Typical Applications

• Power Generation: Generator excitation systems, high-voltage inverters, power control
• Industrial Automation: DCS/PLC power regulation, motor control, thyristor rectifiers
• Oil & Gas, Petrochemical: Process power control, variable speed drives
• Metallurgy, Cement: High-power motor control, furnace power regulation

5. Installation & Interface

• Mounting: Cabinet backplane slot mounting (standard ABB DCS card slot)
• Connection: Gold-plated edge connector for backplane communication
• Wiring: External terminal block for 24V DC power and signal output

6. Notes

• Compatibility: Strictly for ABB Advant Master/OCS/AC110/160 systems; no direct replacement
• Condition: New original / refurbished available
• Spare Part: Key component for DCS power control and maintenance
