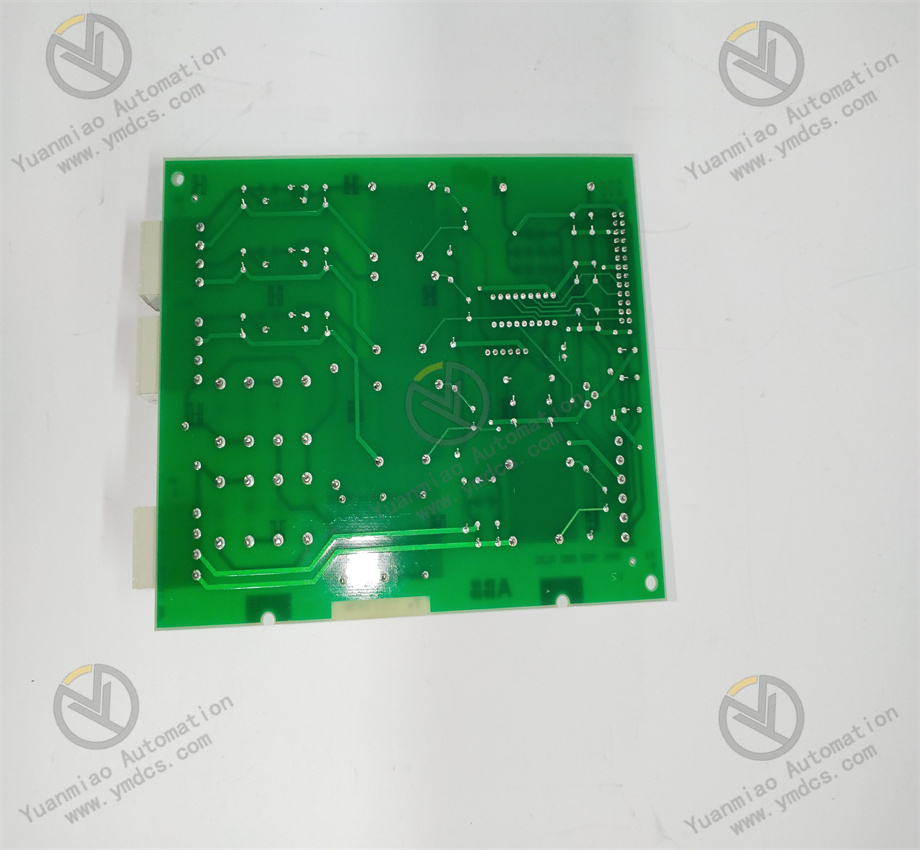

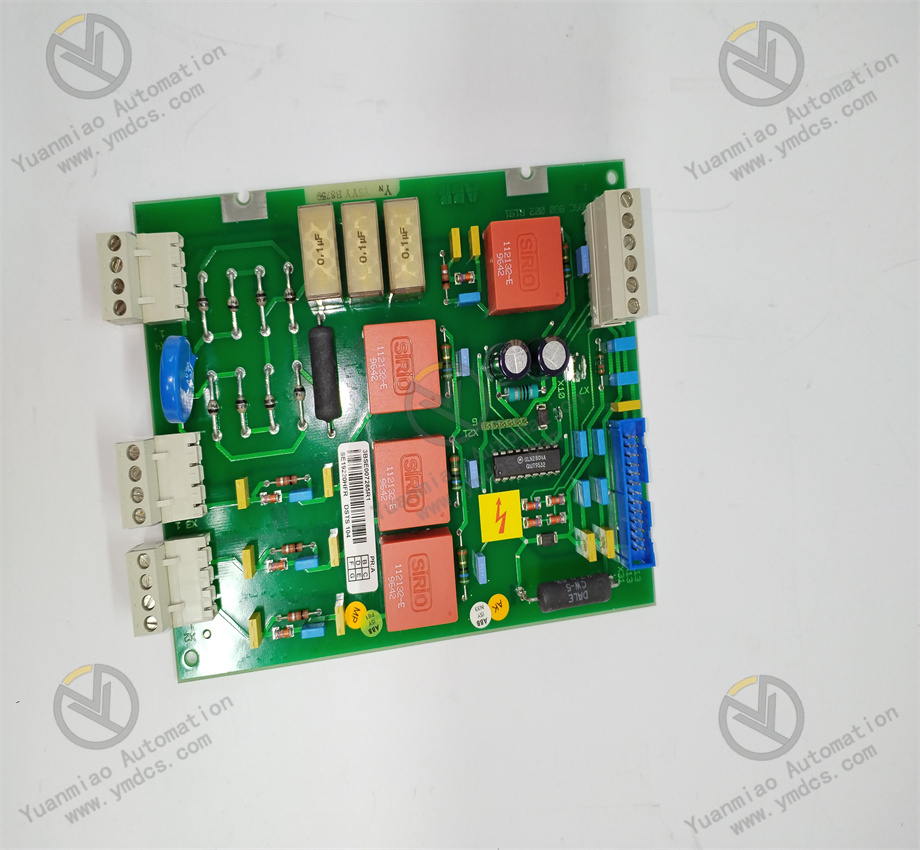

1. Basic Information
- Model: DSTS104
- Part Number: 3BSE007285R1
- Brand: ABB
- Type: Trigger Pulse Amplifier Card
- System Compatibility: ABB Advant Master, Advant OCS, Advant Controller 110/160
- Origin: Sweden
- Warranty: 12 months
- Certifications: CE, RoHS (exempt)
2. Technical Specifications
- Power Supply: 24 V DC
- Output Current: Up to 3 A
- Operating Temperature: -40°C to +70°C
- Dimensions: 198 × 130.5 × 31.5 mm
- Weight: 0.22 kg
- Protection Level: IP20
- Communication: Internal bus interface for ABB DCS backplane
3. Core Functions & Features
-
High-Gain Pulse Amplification
Amplifies weak trigger signals from the control system to sufficient amplitude to drive thyristors, IGBTs, and power switches.
-
Precise Signal Shaping & Isolation
Shapes input signals into clean, sharp trigger pulses; provides electrical isolation between control and power circuits.
-
Fast Response & Low Noise
Ensures rapid response to control commands; low noise design maintains signal integrity in harsh industrial environments.
-
Overload Protection & Recovery
Built-in protection against signal overload; fast baseline recovery prevents amplifier blocking.
-
Modular & Hot-Swappable
Standard card format, plug-and-play, easy installation, replacement, and maintenance in DCS cabinets.
4. Typical Applications
- Power Generation: Generator excitation systems, high-voltage inverters, power plant DCS
- Industrial Automation: Thyristor rectifiers, motor speed regulation, power control loops
- Oil & Gas, Petrochemical: Process power control, variable speed drives
- Metallurgy, Cement: High-power motor control, furnace power regulation
5. Installation & Interface
- Mounting: Cabinet backplane slot mounting (standard ABB DCS card slot)
- Connection: Gold-plated edge connector for backplane communication
- Wiring: External terminal block for 24V DC power and signal input/output
6. Notes
- Compatibility: Strictly for ABB Advant Master/OCS/AC110/160 systems; no direct replacement
- Condition: New original / refurbished available
- Spare Part: Critical component for DCS power control and maintenance
