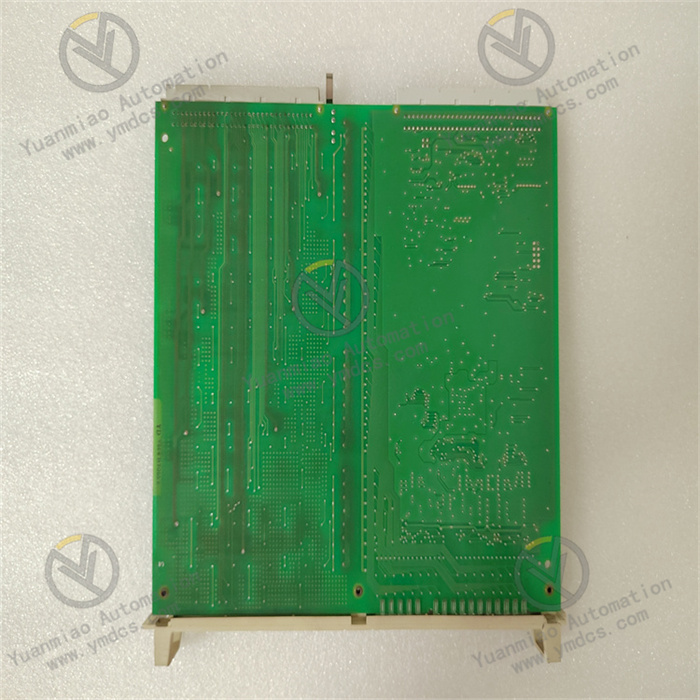

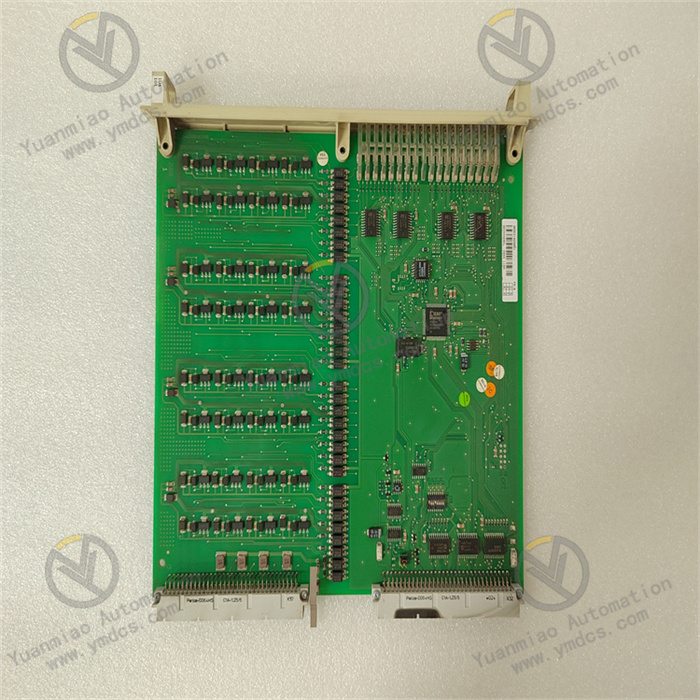

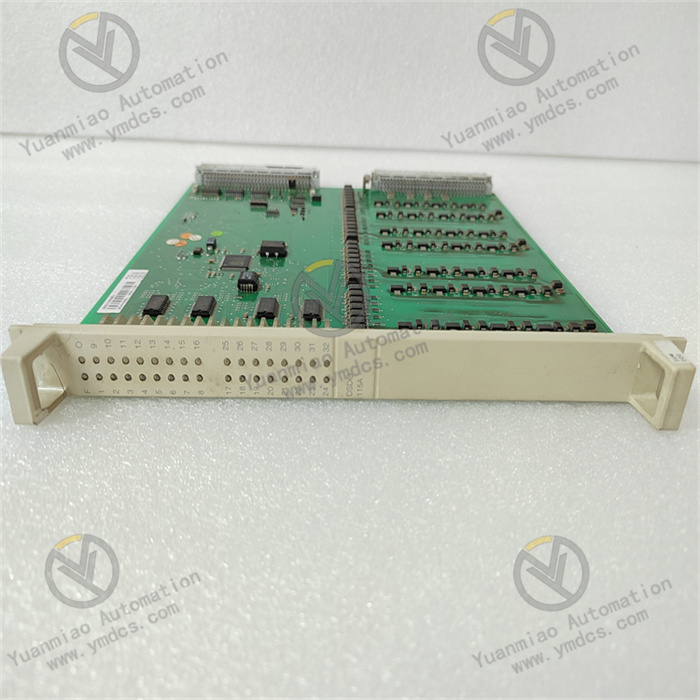

Basic Information
- Model: DSDO115A
- Part Number: 3BSE018298R1
- Manufacturer: ABB (Sweden)
- Type: Digital Output Board (I/O Module)
- Compatible System: ABB Advant OCS / S100 / System 800xA
- Purpose: Drive Actuators, Relays, Valves, Solenoids
- Origin: Sweden
- Certifications: CE, UL, RoHS Exempt
Technical Specifications
- Output Channels: 32 (Isolated)
- Output Type: Transistor (NPN/PNP)
- Output Voltage: 24 V DC
- Current per Channel: 0.5 A
- Max Power: 12 W/Channel
- Response Time: <1 ms
- Operating Voltage: 24 V DC (±10%)
- Operating Temperature: -20°C to +60°C
- Protection Rating: IP20
- Dimensions: 324 × 22.5 × 234 mm
- Weight: 0.32 kg
Key Features
- High Density: 32 isolated channels, compact design
- Fast Response: <1 ms for real-time control
- Safety: Overload/short-circuit protection per channel
- Diagnostics: LED status, fault detection, hot-swap
- Integration: Seamless with ABB Advant / 800xA DCS
Applications
- Process Control: Chemical, Power, Water, Paper, Textile
- Industrial Automation: Motors, Valves, Relays, Contactors
- Robotics/Machine Tools: Actuators, Safety Gates, Indicators
- Building Automation: Fans, Pumps, Valves, Lighting
