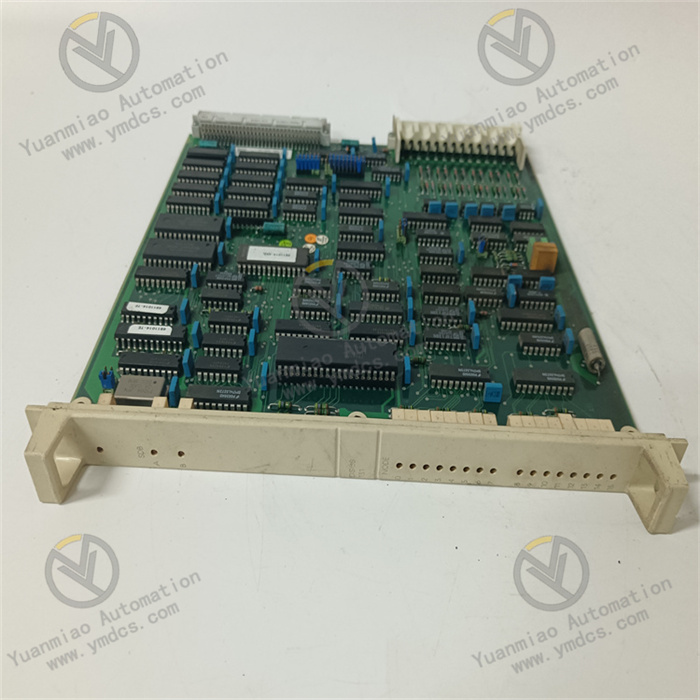

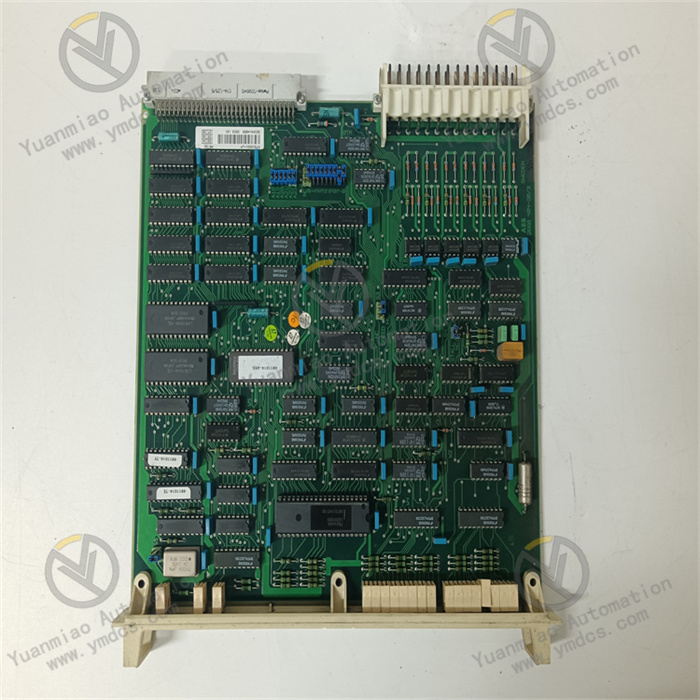

Basic Information
- Model: DSCS131
- Part Number: 57310001-LM
- Manufacturer: ABB (Sweden)
- Type: MasterFieldbus Communication Module
- Compatible System: ABB Advant OCS / S100 / System 800xA
- Purpose: Fieldbus Master Control, I/O Communication
- Origin: Sweden
- Certifications: CE, UL, RoHS
Technical Specifications
- Protocol: MasterFieldbus (ABB proprietary)
- Baud Rate: 31.25 kbps ~ 1.5 Mbps
- Topology: Master-Slave, Redundancy Supported
- Operating Voltage: 24 V DC (±10%)
- Power Consumption: ≤ 5 W
- Temperature: -20°C to +60°C
- Protection: IP20
- Dimensions: 350 × 22.5 × 234 mm
- Weight: 0.4–0.5 kg
Key Features
- Master Control: Central management of fieldbus networks
- High Speed: Fast data exchange for real-time control
- Redundancy: Supports redundant configuration for high availability
- Diagnostics: LED status, fault detection, hot-swap
- Integration: Seamless with ABB Advant / 800xA DCS
Applications
- Process Industries: Chemical, Power, Metallurgy, Paper, Water
- Industrial Automation: Production Lines, Motors, Valves, Sensors
- DCS Systems: ABB 800xA, Advant OCS Fieldbus Core
