Basic Info

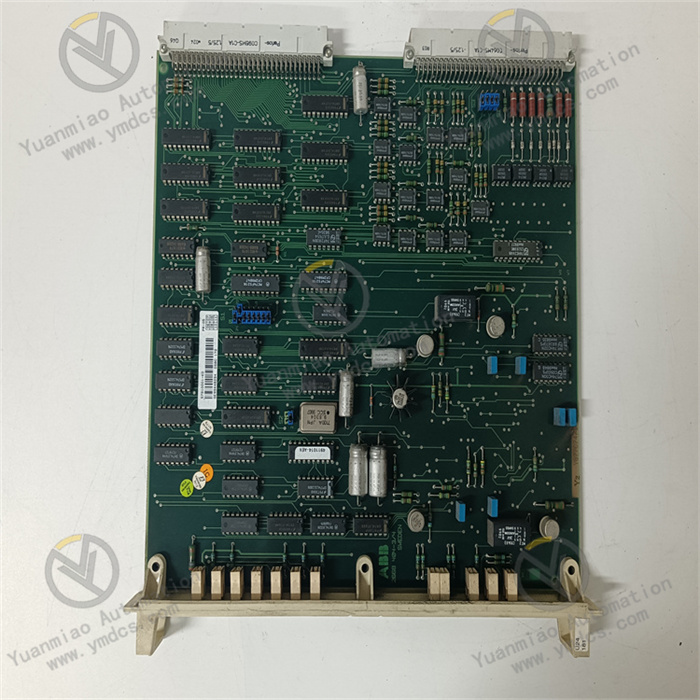

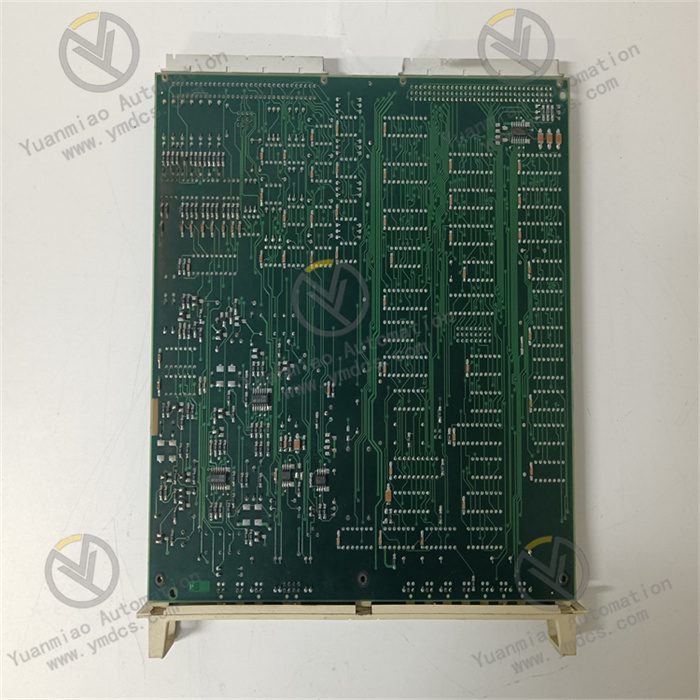

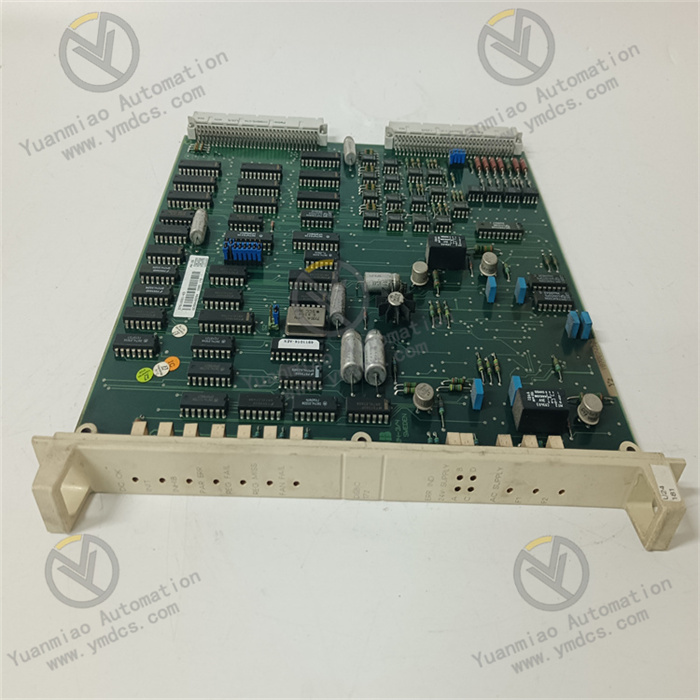

- Model: DSBC172
- Part Number: 57310001-KD
- Manufacturer: ABB (Sweden)
- Type: Bus Repeater / Communication Module
- Compatible Systems: ABB Advant OCS, Advant Master
- Certifications: CE, UL, RoHS
- Weight: 0.4 kg
Key Specs
- Protocols: PROFIBUS DP, Modbus RTU/TCP/IP, EtherNet/IP
- Max Baud Rate: 12 Mbps (Fieldbus); 10/100 Mbps (Ethernet)
- Distance: Up to 1 km
- Nodes: Up to 31 I/O Stations
- Voltage: 24 V DC (±10%), Dual Redundant Power
- Temp Range: -40°C to +70°C
- Dimensions: Approx. 324 × 23.4 × 24.3 cm
Core Features
- Segment Bridging: Connects two PROFIBUS DP segments with mixed baud rates
- Isolation & Redundancy: Electrical isolation, dual power supply for high availability
- Multi-Protocol Support: Seamless integration with major industrial protocols
- Advanced Diagnostics: DPV1 diagnostics, LED status, easy maintenance
Applications
- Process Industries (Power, Chemical, Metallurgy, Paper, Water)
- Industrial Automation Networks & Long-Distance Communication
- DCS System Integration & Device Interconnection
