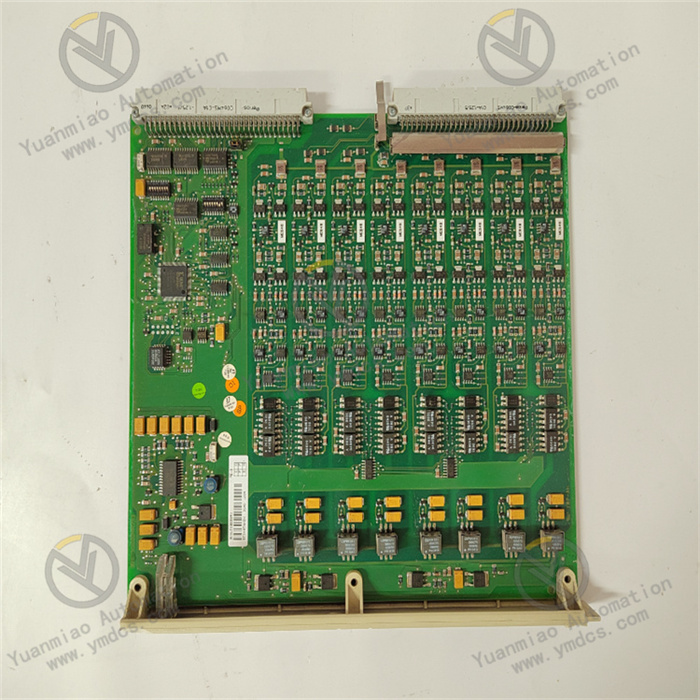

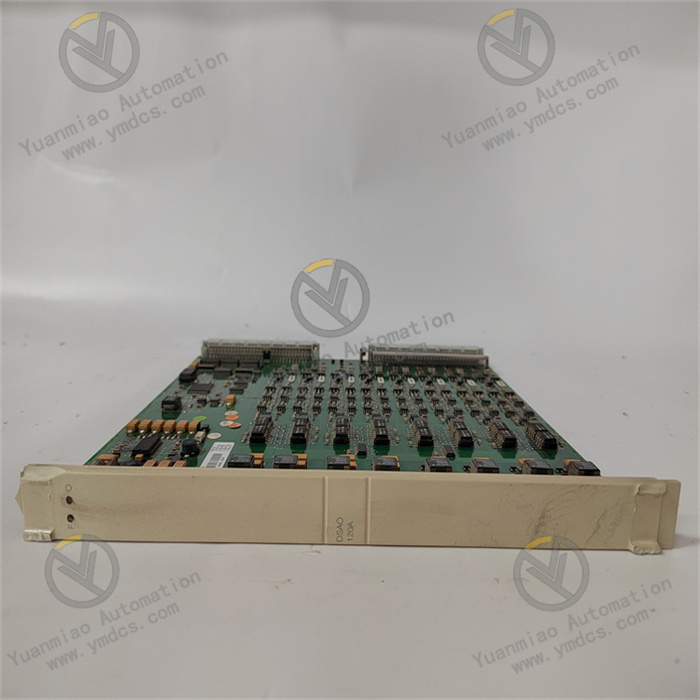

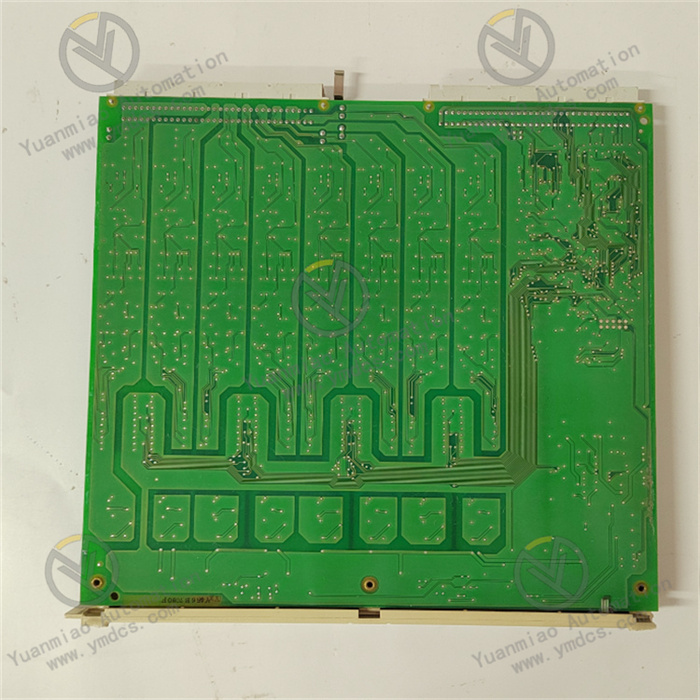

Basic Info
- Model: DSAO120A
- Part No.: 3BSE018293R1
- Manufacturer: ABB (Sweden)
- Type: Analog Output Board (8 Channels)
- System: AC800M, System 800xA, S800 I/O
- Weight: 0.372 kg
- Dimensions: 324 × 27 × 234 mm
Key Specs
- Channels: 8 isolated outputs
- Output: 4-20mA / 0-10V
- Resolution: 12-bit
- Accuracy: ±0.1% FS
- Isolation: 500 VAC (channel-to-channel/bus)
- Power: 24 V DC
- Temp: -20°C to +70°C
- HART: Supported
Features
- High Precision: 12-bit resolution, ±0.1% accuracy
- Isolation: 500 VAC isolation for noise immunity
- HART: Digital communication over 4-20mA
- Software Config: No jumpers, online setup
- Diagnostics: LED status, fault detection
Applications
- Process Industries (Power, Chemical, Oil & Gas, Water)
- Industrial Automation (Valves, Motors, Actuators)
- DCS Systems (ABB 800xA, AC800M)
