Basic Info

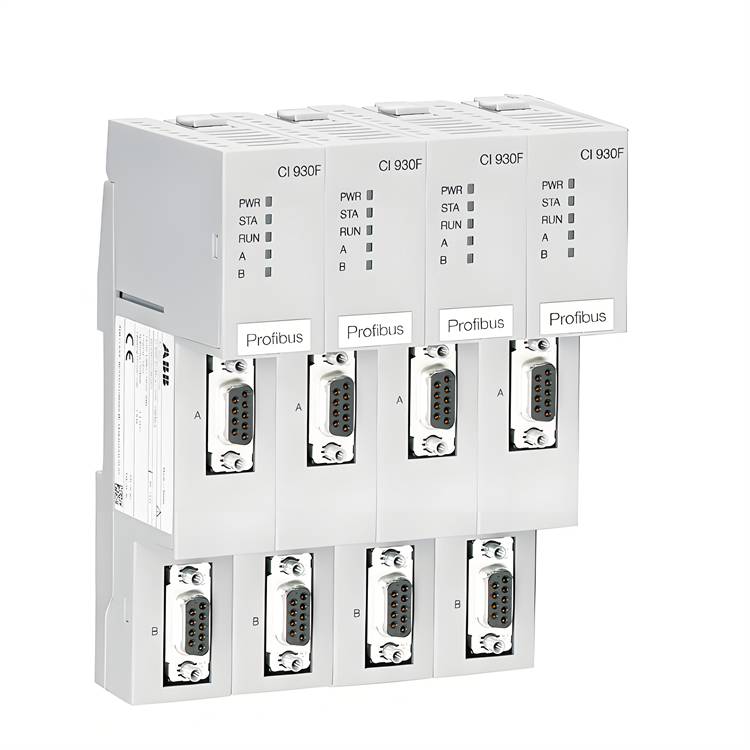

- Model: CI930F
- Part No.: 3BDH001010R0002
- Manufacturer: ABB (Sweden)
- Type: PROFIBUS DP Master Module
- System: AC 900F, AC 800M, 800xA
- Weight: 0.15 kg
- Dimensions: 75 × 152 × 28 mm
Key Specs
- Protocol: PROFIBUS DP-V0 / DP-V1 (Master)
- Speed: 9.6 kbps ~ 12 Mbps
- Connectors: 2 × 9-pin D-Sub (A/B redundant)
- Slaves: Max 126
- Redundancy: PROFIBUS line + controller redundancy
- Power: 24 V DC
- Power Consumption: 1.8 W
- Temp: 0°C ~ +60°C
- Hot Swap: Supported
Features
- Master Control: Manages all DP slaves (init, config, poll, diagnose)
- Redundant Communication: Dual A/B lines for failover
- Wide Compatibility: Works with all PROFIBUS DP devices
- Diagnostics: LED status, online fault detection
- Hot Swap: Replace module without stopping system
Applications
- Process Industries (Power, Chemical, Oil & Gas, Water)
- Industrial Automation (Drives, Remote I/O, Smart Instruments)
- DCS Systems (ABB AC 900F, AC 800M, 800xA)
