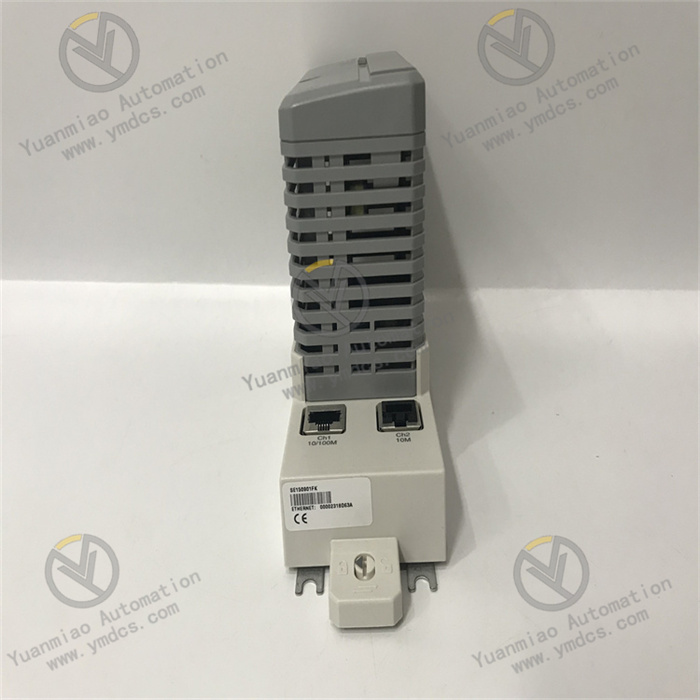

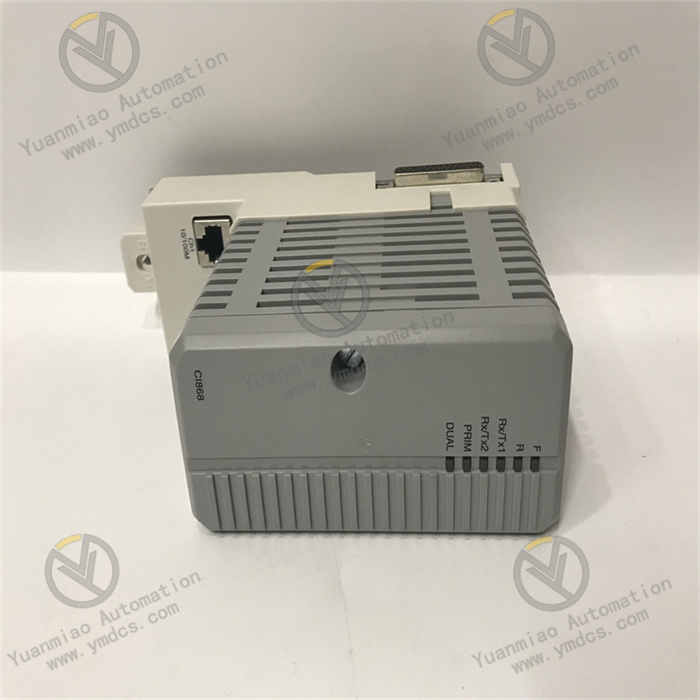

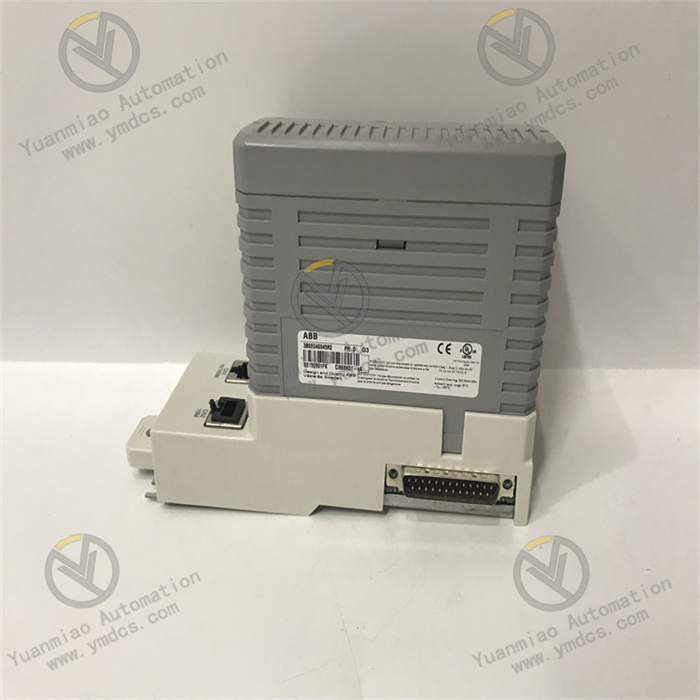

Basic Info
- Model: CI868K01-eA
- Part No.: 3BSE048845R2
- Manufacturer: ABB (Sweden)
- Type: IEC 61850 Communication Interface
- System: AC 800M, 800xA
- Weight: 1.2 kg (with TP867 baseplate)
- Dimensions: 59 × 186 × 127.5 mm
- Certifications: CE, UL, RoHS
Key Specs
- Protocol: IEC 61850 Ed.1 (MMS, GOOSE, SV)
- Ports: 2 × RJ45 (10/100/1000 Mbps)
- Serial: 4 × Isolated RS-485
- Processor: ARM Cortex-A8 1GHz Dual-core
- Memory: 256MB DDR3 + 1GB Flash
- Power: 24 V DC ±10%
- Temp: -25°C to +70°C
- Hot Swap: Supported
Features
- IEC 61850: GOOSE (trip/interlock), SV (sampling), MMS (control)
- Dual Gigabit Ethernet: Redundancy, high-speed data
- Multi-protocol: IEC 61850, PROFIBUS, Modbus, HART
- Redundancy: Dual processor, hot swap, online diagnostics
- Isolation: 1500V AC electrical isolation
Applications
- Power Systems: Substation automation, smart grid, protection control
- Process Industries: Power, Chemical, Oil & Gas, Water
- Data Acquisition: IEDs, relays, meters, monitoring devices
