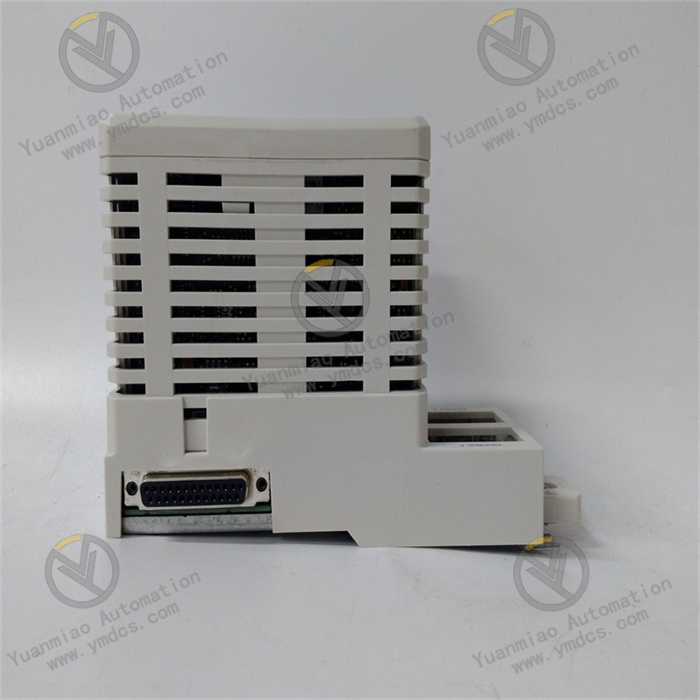

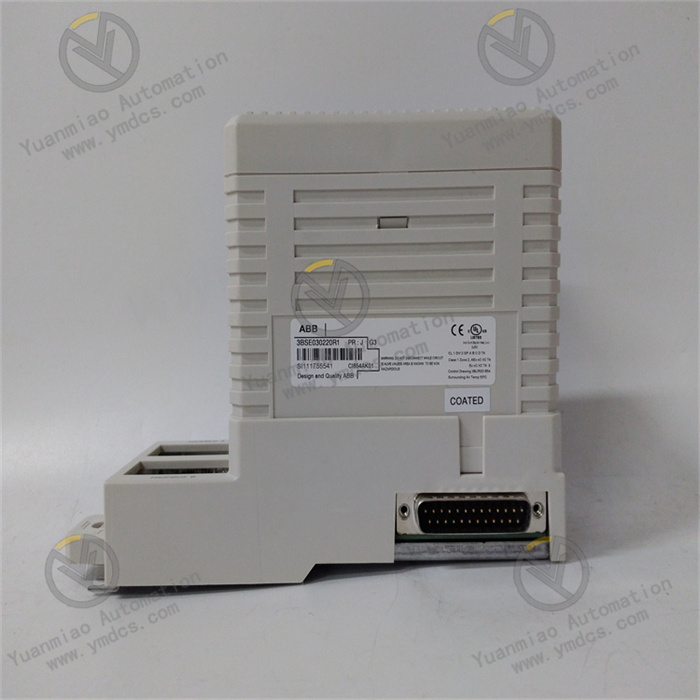

ABB CI854AK01 3BSE030220R1

1. Basic Information

• Model: CI854AK01
• Order Number: 3BSE030220R1
• Brand: ABB
• Series: AC 800M / S800 I/O
• Product Type: PROFIBUS DP‑V1 Master Communication Module
• Note: Not RoHS 2 compliant (for systems installed before July 22, 2017; new installations use CI854BK01)ABB Group

2. Key Features & Functions

• Supports PROFIBUS DP‑V1 master operation
• Dual PROFIBUS DP ports (2× DB9 connectors) for line redundancy
• Supports module redundancy (dual‑module master redundancy)
• Auto‑baud rate detection: 9.6 kbps ~ 12 Mbps
• Hot‑swappable (online replacement without shutdown)
• Galvanic isolation between K‑bus and fieldbus

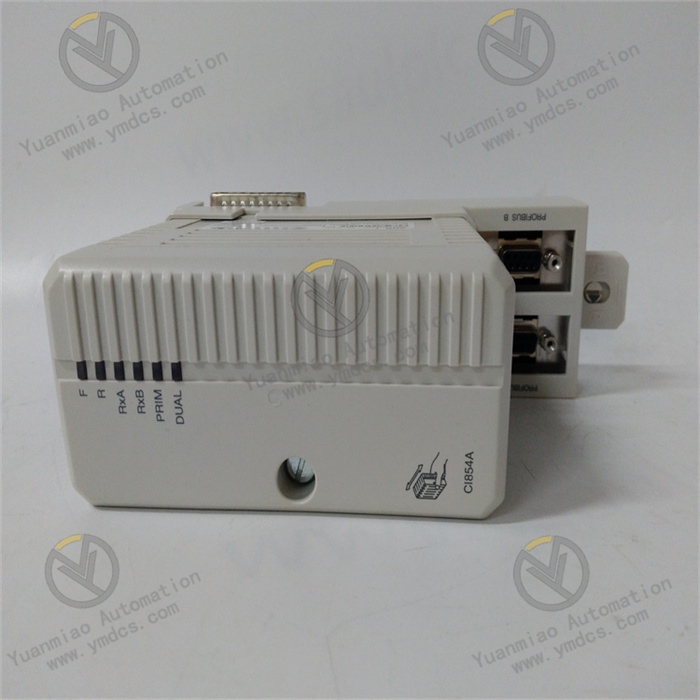

• LED status indicators for diagnostics

3. Technical Specifications

• Power Supply: 24 VDC (19.2–30 V), redundant input
• Power Consumption: Typical 190 mA
• Channels: 2 (PROFIBUS DP)
• Max Nodes on CEX Bus: 12
• Operating Temperature: +5°C ~ +55°C
• Storage Temperature: -40°C ~ +70°C
• Humidity: 5–95% non‑condensing
• Protection Class: IP20
• Dimensions: 59 mm (W) × 185 mm (H) × 127.5 mm (D)
• Weight: Approx. 0.7 kg (with baseplate)
• Certifications: CE, marine certificates (BV, DNV‑GL, LR, RS, CCS)

4. Compatibility

• Controllers: ABB AC 800M (including HI performance controllers)
• Software: System 800xA, Compact Control Builder
• I/O & Devices: S800 I/O, all standard PROFIBUS DP/DP‑V1 devices

5. Applications

• Industries: Power, chemical, metallurgy, pulp & paper, water treatment
• Usage: Connect remote I/O, drives, motor control centers, instruments, third‑party PLCs
• Purpose: High‑reliability redundant systems, high‑speed data acquisition
