1. Basic Information
| Item | Details |
|---|---|
| Manufacturer | ABB (produced in Switzerland / Sweden) |
| Model Number | 5SHY4045L0006 |
| Order No. / Driver Board Code | 3BHB030310R0001 |
| Product Type | Integrated Gate‑Commutated Thyristor (IGCT) Module |
| Net Weight | Approx. 3 kg |
| Package Type | Press‑pack disc package (chip diameter 91 mm) |
| Protection Degree | IP20 (module body) |
| Mounting | Bolt press‑fit installation, requires dedicated heat sink and specified torque |
2. Key Electrical Specifications
| Parameter | Value | Description |
|---|---|---|
| Rated Voltage | 4500 V (VDRM repetitive peak off‑state voltage) | For medium‑ and high‑voltage power electronic systems |
| Average On‑State Current | 2600 A (ITAV) | High continuous current carrying capability |
| Control Power Supply | 24 V DC ±10% | Standard gate drive supply |
| Switching Speed | Microsecond level | Turn‑off time ≤5 μs, loss ≈ 1/3 of conventional thyristors |
| Surge Current | 10 × rated value | Strong short‑term impulse withstand capability |
| Operating Temperature | -25 ℃ ~ +60 ℃ | Wide temperature range for industrial environments |
| Maximum Junction Temperature | 125 ℃ (reference to similar models) | Thermal safety limit |
| Cooling Method | Forced water cooling (recommended) / high‑performance air cooling | Higher efficiency for high‑power applications |

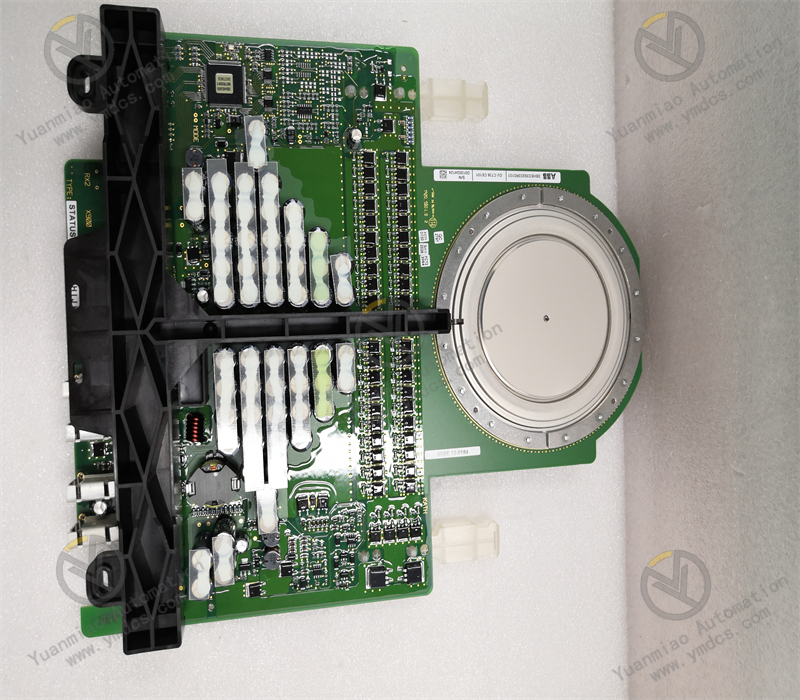

3. Structure & Integrated Design
- Integrated design: Built‑in IGCT chip, anti‑parallel freewheeling diode, gate drive circuit, snubber and protection circuits, with low parasitic inductance for simplified system integration.
- Gate driver board (3BHB030310R0001): Equipped with fiber‑optic isolated communication, drive power supply, overcurrent / overvoltage / overtemperature protection logic, strong anti‑interference performance.
- Thermal design: Press‑pack ceramic insulated substrate with water‑cooling channels (G1/2 thread interface) for efficient heat dissipation and stable junction temperature.
- Protection features: Internal overcurrent (turn‑off within 1 μs at 1.5 × rated current), overvoltage (clamped at 1.2 × rated voltage), overtemperature (alarm & turn‑off above 140 ℃), di/dt and dv/dt protection.
4. Key Features & Advantages
- Low loss: Transparent anode technology reduces conduction loss and improves system efficiency.
- Fast controllability: Excellent high‑frequency switching performance suitable for PWM modulation.
- High reliability: Industrial‑grade package, vibration and high temperature resistant, MTBF > 50,000 hours.
- Scalability: Supports parallel connection with good current sharing for high‑power expansion.
- Easy integration: Standardized interfaces, compatible with ABB dedicated driver units (e.g. GVC736 series).
5. Typical Applications
- ABB medium‑ and high‑voltage drives: Main switching device for ACS5000, ACS6000, ACS8000 series.
- Industrial drives: Metallurgical rolling mills, mining, cement, petrochemical, large fans, pumps, compressors.
- Power systems: HVDC, FACTS, SVG Static Var Generators.
- Renewable energy: Wind and solar grid‑connected converters.
- Rail transit: Traction converters for rail vehicles.
6. Installation & Maintenance Guidelines
Installation
Install in a dry and clean environment with a flat mounting surface (tolerance ≤ 0.1 mm/m); apply conductive paste to power busbars and fasten them according to specified torque; route drive wires and power wires separately (distance ≥ 30 cm) with the shielding layer grounded at one end.
Water Cooling
Use deionized water / dedicated antifreeze with a flow rate ≥ 10 L/min and pressure 0.2~0.5 MPa; regularly clean pipelines and monitor conductivity (≤ 5 μS/cm).
Maintenance
Regularly inspect temperature, current and voltage; clean the module surface weekly and check the water cooling system monthly; conduct insulation, switching characteristics and protection function tests annually.
