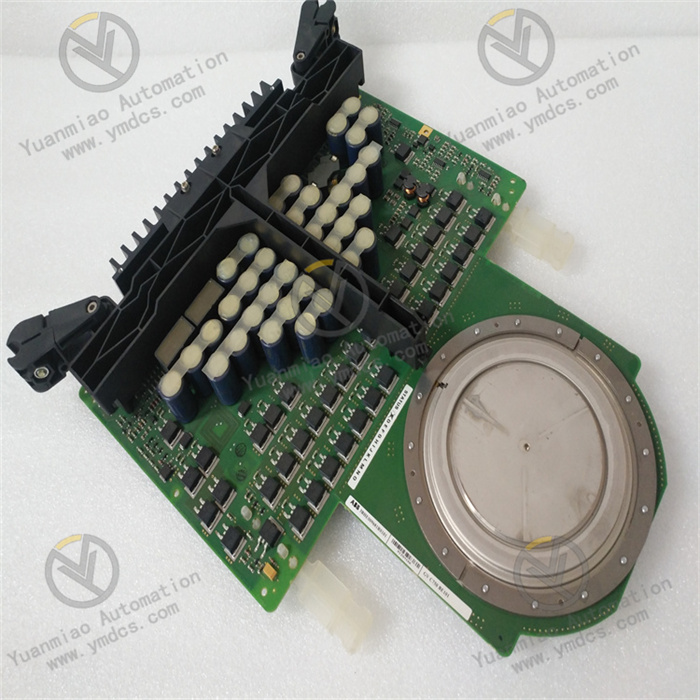

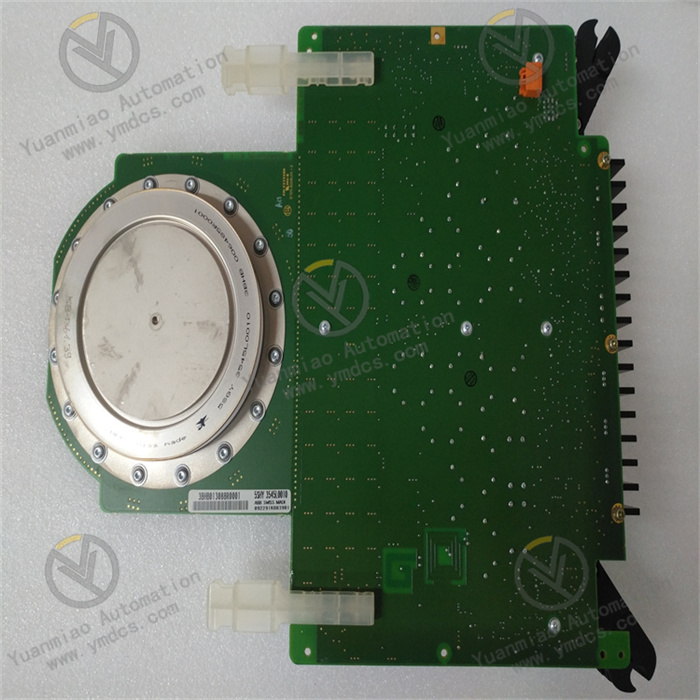

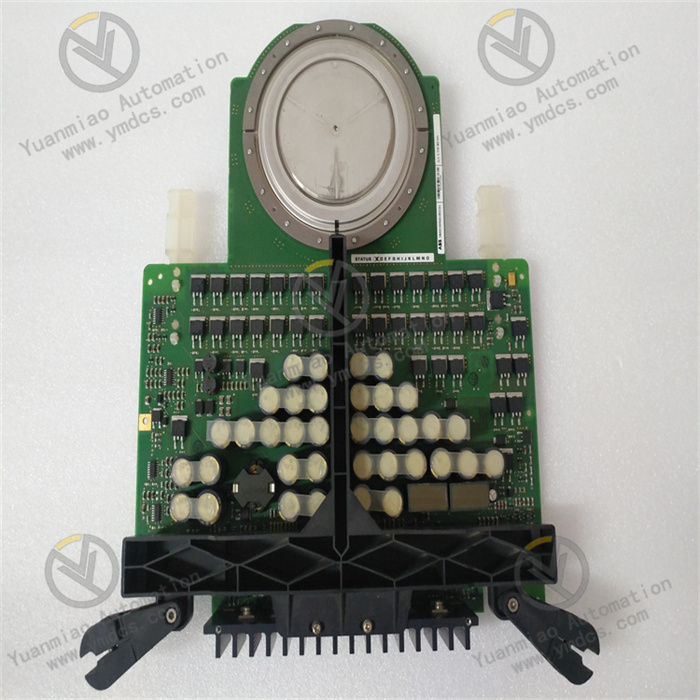

1. 5SHY3545L0010 (Power Module)
Core Function: Serves as an IGCT power switch to realize high-voltage, high-current power conversion (rectification / inversion).
Technology Type: Asymmetrical IGCT (Integrated Gate Commutated Thyristor)
Rated Voltage: 4500V
Rated Current: 3500A
Rated Voltage: 4500V
Rated Current: 3500A
Switching Characteristics:
- Turn-on / Turn-off Time: 1.5μs
- On-state Voltage Drop: 2.5V
- Turn-off Leakage Current: 10mA
Operating Temperature: -40℃ ~ +125℃
Cooling Method: Water cooling
Protection Functions: Overcurrent, short-circuit, overvoltage, overtemperature protection
Dimensions / Weight: Approx. 100×150×50mm / 2.5kg
Cooling Method: Water cooling
Protection Functions: Overcurrent, short-circuit, overvoltage, overtemperature protection
Dimensions / Weight: Approx. 100×150×50mm / 2.5kg
2. 3BHB013088R0001 (Drive / Control Module)
Core Function: Drive and control board that receives commands from the host controller, generates precise gate signals, and controls the switching of the 5SHY3545L0010.
Input Voltage: 24VDC
Communication Interface: PROFIBUS / EtherNet/IP
Protection Grade: IP65
Operating Temperature: -40℃ ~ +85℃
Processing Frequency: 50kHz (real-time response)
Anti-interference: 80dB noise rejection (10MHz–1GHz)
Diagnostic Functions: Built-in self-test, supports MODBUS predictive maintenance alarms
Communication Interface: PROFIBUS / EtherNet/IP
Protection Grade: IP65
Operating Temperature: -40℃ ~ +85℃
Processing Frequency: 50kHz (real-time response)
Anti-interference: 80dB noise rejection (10MHz–1GHz)
Diagnostic Functions: Built-in self-test, supports MODBUS predictive maintenance alarms
3. Combined Application & Advantages
Standard Configuration: 5SHY3545L0010 (Power Module) + 3BHB013088R0001 (Drive Board) + 3BHE009681R0101 (Drive Board) + GVC750BE101 (Power Board), forming a complete IGCT power unit.
Typical Applications:
- High-voltage inverters (e.g., ABB ACS800/6000 series)
- Wind / PV converters
- High Voltage Direct Current (HVDC) transmission
- Industrial drives (rolling mills, mine hoists)
- Power grid equipment
Key Advantages:
- High Power Density: Compact design with high power density
- Low Losses: Low switching losses, high system efficiency
- High Reliability: Long service life, anti-interference, wide-temperature operation
- Modular Design: Easy installation, maintenance and replacement
