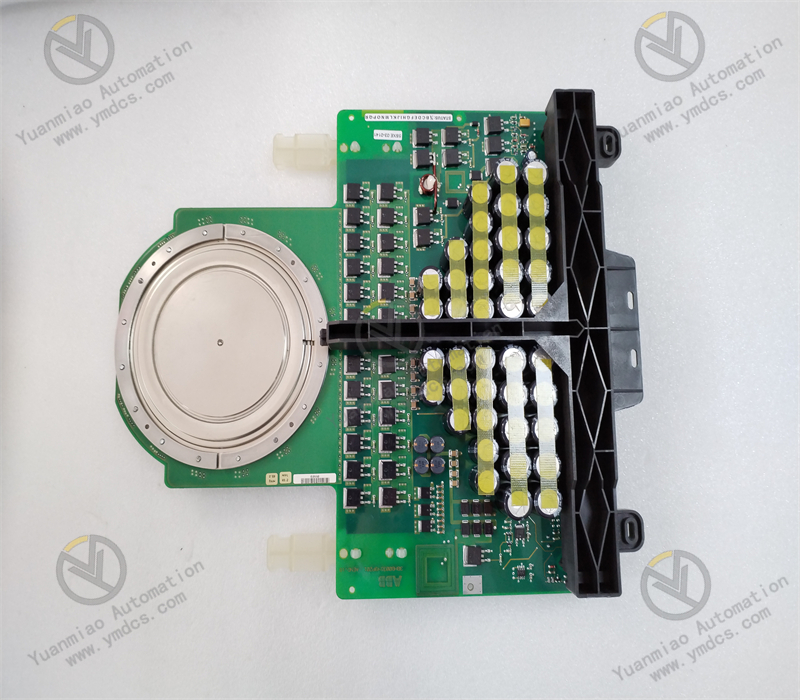

Type: Asymmetrical IGCT module with integrated IGCT chip and anti-parallel freewheeling diode.
Technology: Combines the high-speed switching of IGBT and high blocking voltage of GTO, featuring low loss, high power density and fast switching.
Package: Press-pack package, robust and compact with excellent heat dissipation.
Applications: Medium & high voltage inverters, Flexible AC Transmission Systems (FACTS), High Voltage Direct Current (HVDC), large motor drives, marine propulsion, metallurgy/mining equipment.

Rated blocking voltage: 4500 V (VDRM/VRRM)
Rated on-state current: 2645 A (ITCM)
Turn-off current: Snubberless turn-off supported
Switching frequency: Up to 2 kHz
Turn-on / turn-off time: ≤ 1.5 μs
Operating temperature: -40°C ~ +150°C

Integrated drive: Built-in gate drive circuit for gate commutation and hard-drive turn-off.
Protection functions: Integrated overvoltage (BOD), overcurrent, overheating, transient suppression and other protections.
Trigger mode: Optical fiber isolated trigger, strong EMI immunity, delay < 1μs.
Cooling: Water cooling (deionized water), flow rate 3–6 L/min.
Dimensions / Weight: Approx. 160×120×80 mm, 2.5 kg.
Protection degree: IP20.
