Key Parameters

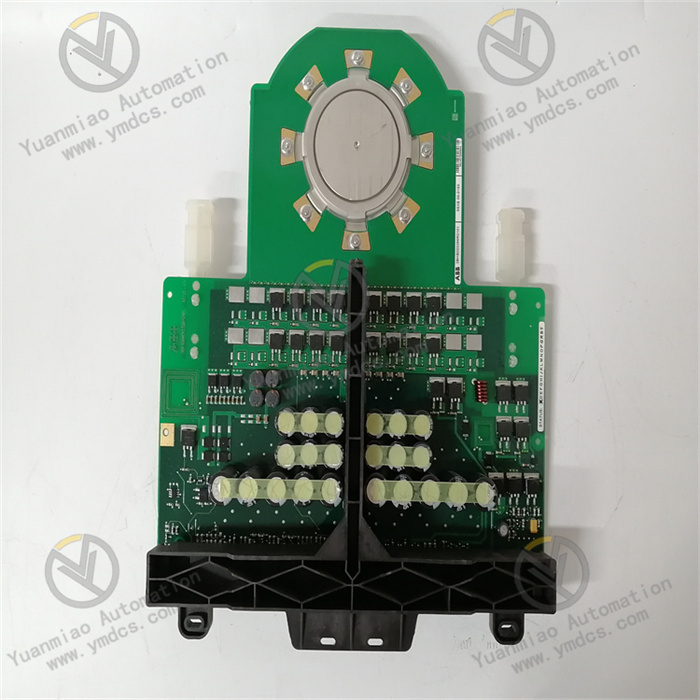

| Parameter | Typical Value | Description |
|---|---|---|
| Part Number | 5SHX1445H0002 | ABB 5SHX Series IGCT Module |
| Rated Voltage | 3.3 kV | Suitable for medium & high-voltage topologies, supports series connection for voltage scaling |
| Rated Current | 1445 A | Continuous current rating, peak current higher |
| On-state Voltage Drop | Approx. 2.5 V | Low-loss characteristic, ~40% lower than conventional GTO |
| Turn-off Time | ≤1 µs | Ultra-fast turn-off, device-to-device variation < 0.2 µs, excellent for series voltage balancing |
| Switching Frequency | Up to 1 kHz | Balances loss and dynamic performance, supports short pulse trains |
| Package Type | Press-Pack | Disc structure, double-sided cooling, pressure-mountable |
| Operating Temperature | -25 ℃ to +70 ℃ | Case temperature range; junction temperature higher |
| Drive Requirement | 24 V DC supply + optical fiber isolation | Integrated drive, low-inductance gate connection |
| Short-circuit Withstand | 10 kA | Single-pulse short-circuit capability, turns off within 3 µs |
| Protection Design | Hardware Fault Tolerance (TMR) | Microsecond-level fault response, enables fuse-less design |
Key Features
High Integration & Snubber-less
Chip, diode, drive and protection are fully integrated. No additional snubber circuits required, reducing component count and improving system reliability and power density.
Fast Turn-off & Voltage Balancing Advantage
Short and consistent turn-off time ensures uniform dynamic voltage distribution in series, reduces overvoltage risk, and fits high-voltage series topologies.
Low Loss & High Efficiency
Low on-state voltage and low switching loss, system efficiency over 98%, ideal for high-power continuous operation.
Hardware Fault Tolerance & Long Lifetime
Adopts TMR (Triple Modular Redundancy) architecture with microsecond fault response; reduces voltage stress on single device, lifetime ~20 times longer than conventional solutions.
Press-Pack & Easy Maintenance
Disc structure optimizes heat dissipation; modular design enables easy replacement and lowers maintenance cost.
