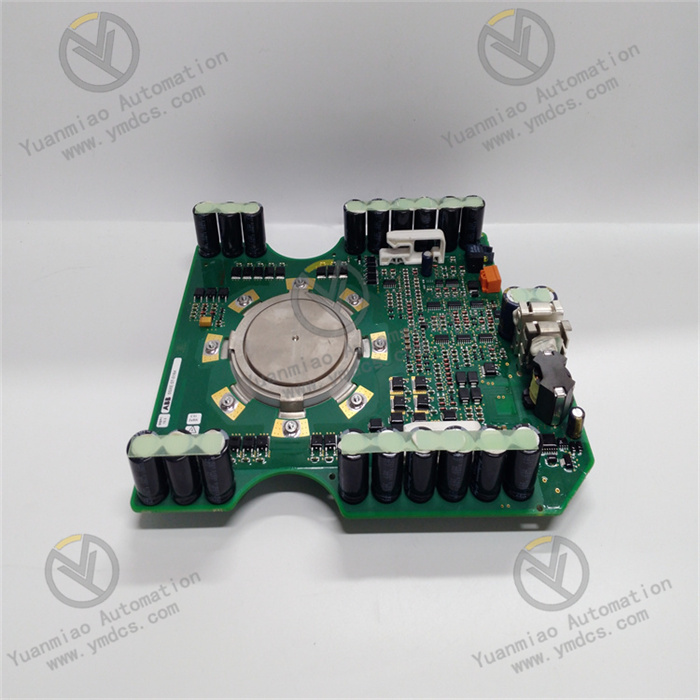

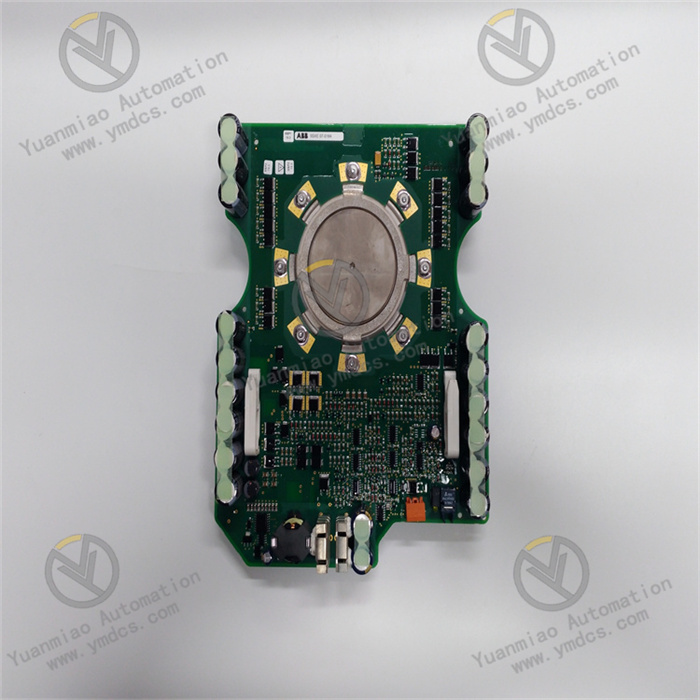

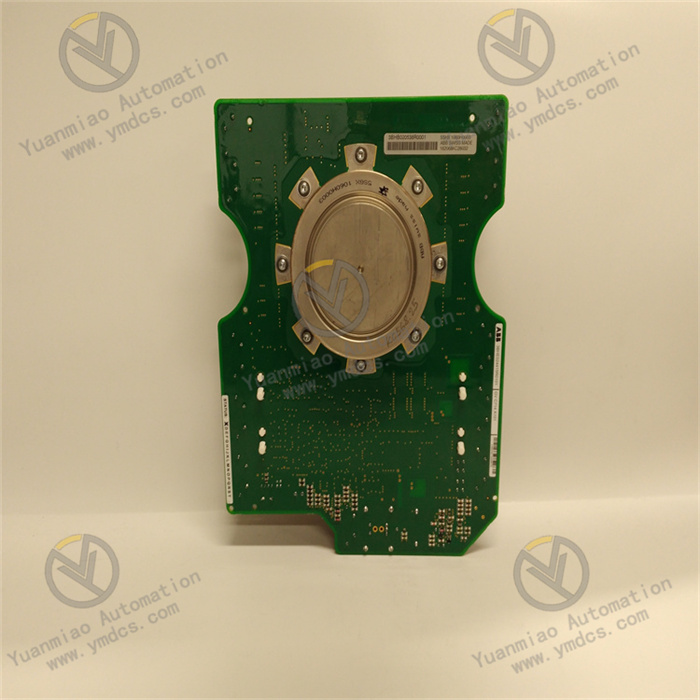

1. Core Parameters (5SHX1060H0003 Module)
| Parameter | Typical Value | Description |
|---|---|---|
| Part Number | 5SHX1060H0003 | ABB 5SHX series RC-IGCT |
| Rated Voltage (VDRM) | 6.0 kV | Blocking voltage, suitable for 6 kV medium-voltage topologies |
| Rated Current (ITAV) | 1060 A | Continuous DC current |
| Peak Current (ITSM) | 2120 A | Surge peak current |
| On-state Voltage Drop (VTM) | ≈ 2.8 V | Low loss, approx. 35% lower than conventional GTO |
| Turn-off Time (tq) | ≤ 1 µs | Ultra-fast turn-off, excellent device consistency |
| Switching Frequency | Up to 500 Hz | Balances power loss and dynamic performance |
| Package | Press-pack (disc type) | Double-sided cooling, press-fit installation |
| Operating Temperature | -25℃ ~ +70℃ (case temperature) | Maximum junction temperature 125℃ |
| Short-circuit Withstand | 12 kA | Fast turn-off within 3 µs |
| Drive Interface | Fiber isolation + 24V DC | Integrated drive, low-inductance gate connection |
| Dimensions / Weight | 142×127×36 mm / 1.3 kg | Standard press-pack module size |
2. Matching Drive Board: GVC714A101 (3BHE024415R0101)
- Part Number: GVC714A101 (3BHE024415R0101)
- Function: IGCT gate drive + protection + optical fiber communication
- Power Supply: 24V DC (±10%)
- Drive Current: Peak 4A, suitable for high-current IGCTs
- Protection: Overcurrent, overvoltage, undervoltage, over-temperature, gate fault
- Communication: 2-channel optical fiber, strong anti-interference performance
- Operating Temperature: -40℃ ~ +85℃
- Dimensions: Standard 3U board, compatible with ACS5000 cabinet
3. Key Features (RC-IGCT 5SHX1060H0003)
Reverse Conducting (RC) Design
- Built-in anti-parallel freewheeling diode, no external diode required
- Simplifies circuit, reduces cost and improves reliability
Snubber-less & Low Loss
- Integrated gate drive and TMR protection, no RC snubber needed
- Low on-state voltage and low switching loss, system efficiency > 98%
Fast Turn-off & Series Voltage Balancing
- Turn-off time ≤ 1 µs with excellent device consistency
- Excellent dynamic voltage sharing in series, suitable for 6 kV ~ 12 kV high-voltage series topologies
High Reliability & Long Lifetime
- TMR (Triple Modular Redundancy): microsecond-level fault response
- Short-circuit withstand 12 kA, turn-off within 3 µs
- Press-pack package, double-sided cooling, vibration-resistant, long service life
4. Typical Applications
- ABB ACS5000 medium-voltage inverters (6 kV / 10 kV)
- Medium-voltage high-power drives: rolling mills, fans, pumps, compressors
- VSC-HVDC (Voltage Source Converter based High Voltage Direct Current)
- Wind power converters (5 MW+), PV inverters
- Grid SVG / STATCOM, energy storage converters
