1. Core Parameters
| Parameter | Typical Value | Description |
|---|---|---|

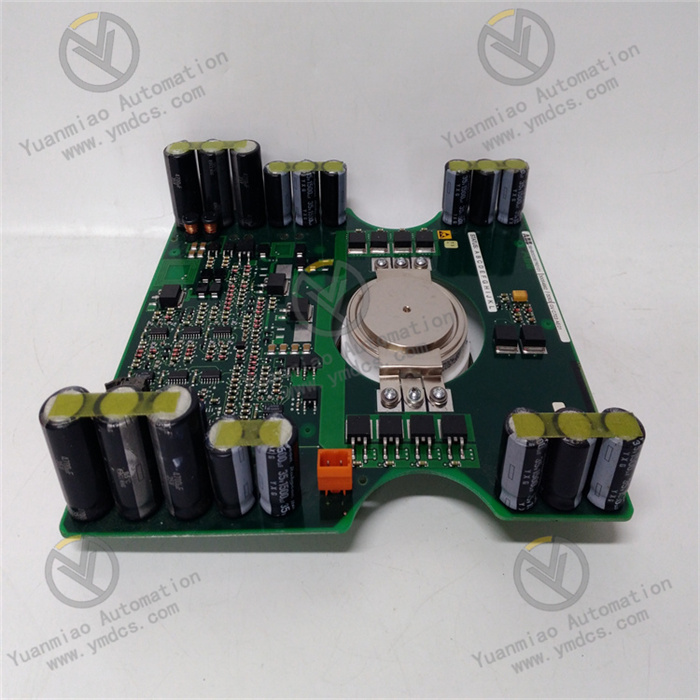

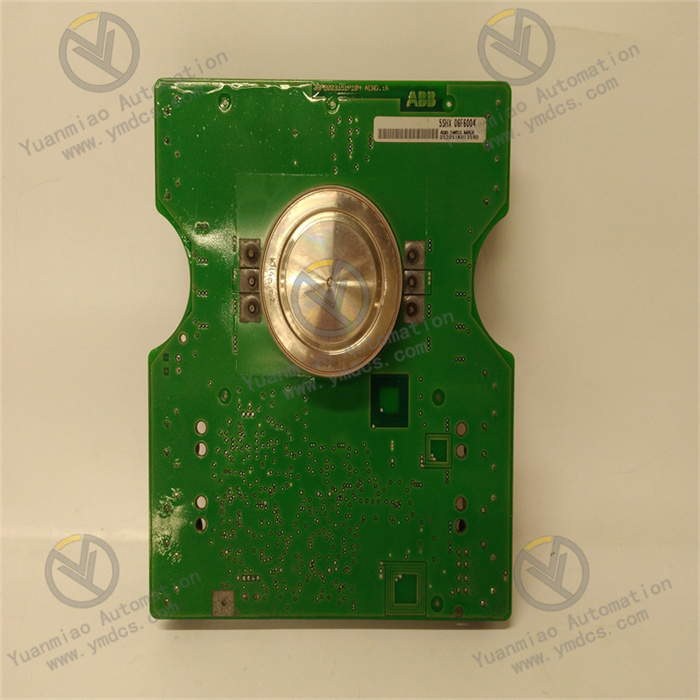

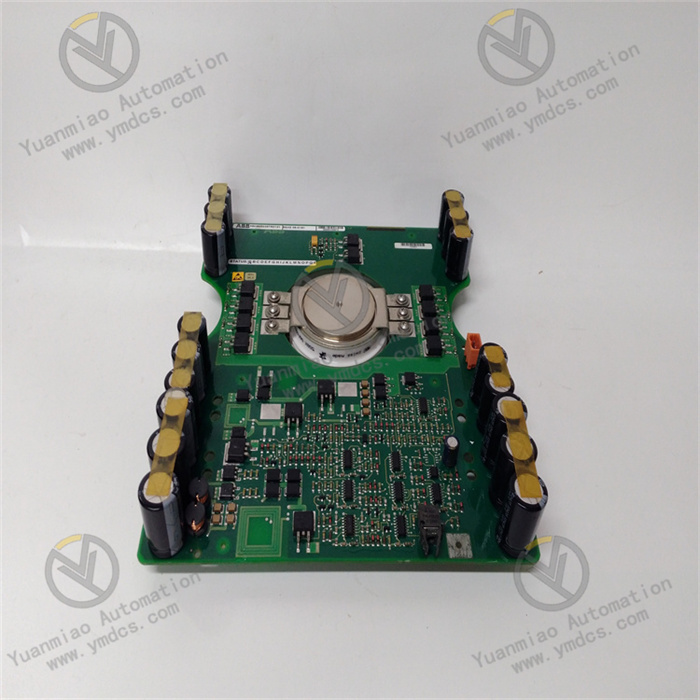

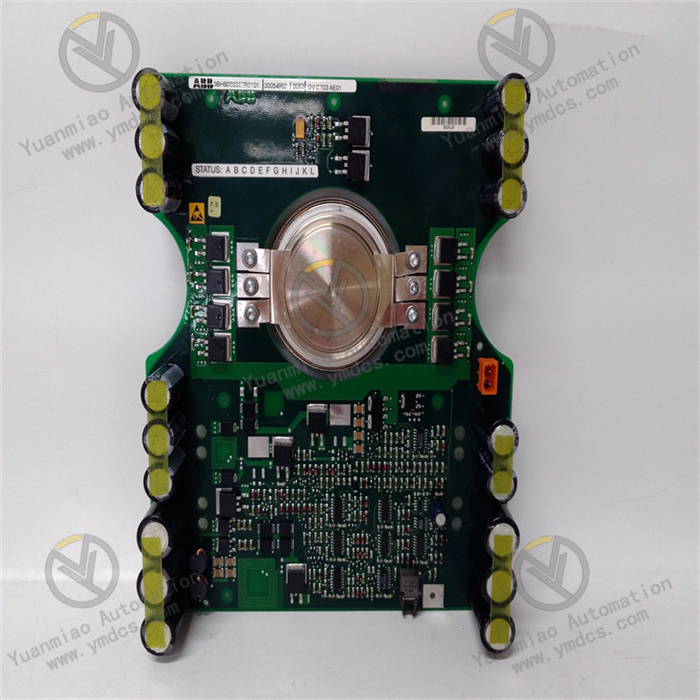

| Part Number | 5SHX08F4502 / GVC703AE01 | ABB 5SHX series asymmetric press-pack IGCT |
| Rated Voltage (VDRM) | 4.5 kV | High-voltage blocking, suitable for 2.3–4.16 kV topologies, expandable to 6–12 kV in series |
| Rated Current (ITAV) | 800 A | Continuous DC current (typical value) |
| Peak Current (ITSM) | 2400–3200 A | Surge peak current, supports heavy-duty and short-circuit conditions |
| On-state Voltage Drop (VTM) | ≈2.0–2.2 V | Low loss, approx. 35% lower than conventional GTO |
| Turn-off Time (tq) | ≤1.0 µs | Ultra-fast turn-off, excellent device consistency (variation < 0.2 µs) |
| Switching Frequency | Up to 500 Hz | Balances power loss and dynamic performance, suitable for medium-low frequency high-power applications |
| Package | Press-pack (disc type) | Double-sided cooling, press-fit installation, standard industrial size |
| Operating Temperature | -25℃ ~ +70℃ (case temperature) | Max. junction temperature 125℃, wide temperature range for harsh environments |
| Short-circuit Withstand | 12–15 kA | Fast turn-off within 3 µs, hardware-level fault response |
| Drive Interface | Fiber isolation + 24V DC | Built-in low-inductance gate drive, strong EMI immunity |
| Dimensions / Weight | 145×130×38 mm / 1.5 kg | Standard press-pack module size |
2. Key Features
1. 4.5 kV Asymmetric High-voltage Design
Specially designed for 4.5 kV medium and high-voltage systems. The asymmetric structure optimizes turn-off performance without additional RC snubber, simplifying the topology and reducing cost and losses.
2. Snubber-less Integrated Design
Built-in GTO chip, anti-parallel diode, gate drive and TMR (Triple Modular Redundancy) protection circuit. High integration reduces external components and improves system reliability.
3. Fast Turn-off and Series Voltage Balancing
Turn-off time ≤1 µs, device-to-device variation <0.2 µs, excellent dynamic voltage balancing in series. Uniform voltage distribution among series modules reduces overvoltage risk, suitable for 6–12 kV high-voltage series topologies.
4. Low Loss and High Efficiency
Low on-state voltage drop and low switching loss, system efficiency >98%, suitable for high-power continuous operation and reducing operation and maintenance costs.
5. High Reliability and Hardware Fault Tolerance
TMR provides microsecond-level fault response; press-pack package features double-sided cooling, vibration resistance and long service life, adapting to harsh scenarios such as metallurgy, mining, wind power and marine propulsion.
3. Typical Applications
- ABB medium and high-voltage inverters: ACS6000/ACS8000 series (2.3–4.16 kV), for rolling mills, fans, pumps, marine propulsion, mine hoists.
- Generator excitation systems: AC 800PEC excitation controller for fast voltage regulation and fault protection.
- Grid and new energy equipment: Flexible AC Transmission Systems (FACTS), SVG/STATCOM, wind/PV converters, energy storage converters.
- Industrial heavy-load applications: Main rolling mill drives, mine hoists, petrochemical compressor drives.
4. Matching and Selection Guidelines
1. Matching Drive
Must be used with ABB original drive board (3BHB003387R0101 / GVC703AE01), powered by 24V DC with fiber control to ensure matching drive and protection logic.
2. Cooling Solution
Adopt forced air cooling or liquid cooling, strictly control case temperature within -25℃ ~ +70℃ to ensure long-term stable operation.
3. Series Application
Optimize dynamic voltage balancing by module turn-off consistency; du/dt snubber can be reduced or eliminated to improve system efficiency.
