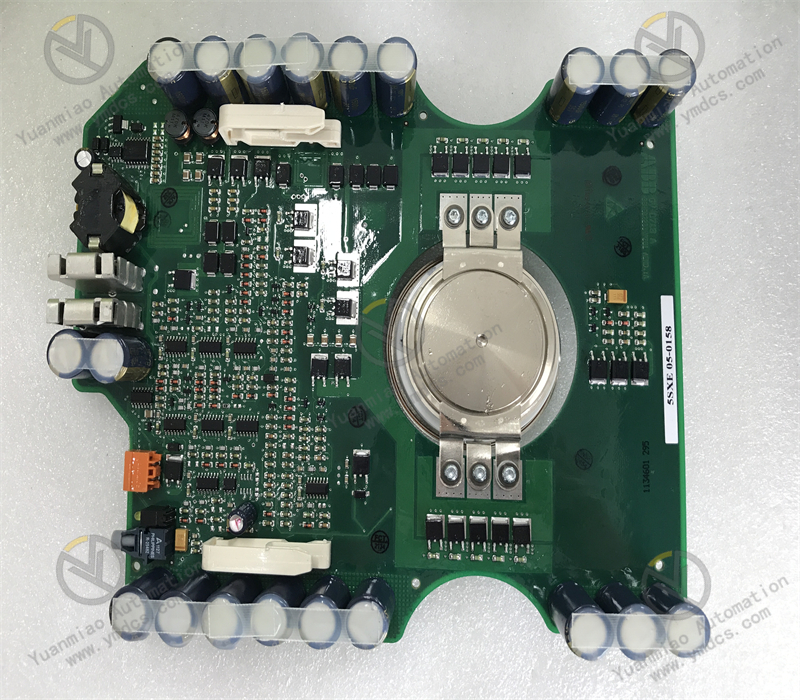

1. Core Component: 5SHX0660F0002 Power Module
1.1 Core Parameters
| Parameter | Typical Value | Description |
|---|---|---|
| Part Number | 5SHX0660F0002 | ABB 5SHX series press-pack IGCT |
| Rated Voltage (VDRM) | 1.2 kV | Medium-voltage blocking, suitable for 690 V–1.2 kV topologies |
| Rated Current (ITAV) | 660 A | Continuous DC current |
| Peak Current (ITSM) | 1320 A | Surge peak current |
| On-state Voltage Drop (VTM) | ≈ 2.0 V | Low loss, approx. 35% lower than conventional GTO |
| Turn-off Time (tq) | ≤ 1 µs | Ultra-fast turn-off, excellent device consistency (variation < 0.2 µs) |
| Switching Frequency | Up to 500 Hz | Balances power loss and dynamic performance |
| Package | Press-pack (disc type) | Double-sided cooling, press-fit, standard size |
| Operating Temperature | -25℃ ~ +70℃ (case temperature) | Max. junction temperature 125℃ |
| Short-circuit Withstand | 10 kA | Fast turn-off within 3 µs |
| Drive Interface | Fiber isolation + 24 V DC | Integrated driver, low-inductance gate, high noise immunity |
| Dimensions / Weight | 142×127×36 mm / 1.2 kg | Standard press-pack module size |
1.2 Key Features
- Highly integrated, snubber-less design: Built-in GTO chip, anti-parallel diode, gate drive and TMR (Triple Modular Redundancy) protection circuit. No RC snubber required, simplifying system, reducing components and improving reliability.
- Fast turn-off and series voltage balancing: Turn-off time ≤ 1 µs, excellent dynamic voltage sharing in series, uniform voltage distribution among series modules, reducing overvoltage risk, suitable for 6–12 kV high-voltage series topologies.
- Low loss and high efficiency: On-state voltage drop ≈ 2.0 V, low switching loss, system efficiency > 98%, ideal for high-power continuous operation.
- High reliability and hardware fault tolerance: TMR provides microsecond-level fault response; press-pack package enables double-sided cooling, vibration resistance and long service life for heavy-duty industrial applications.

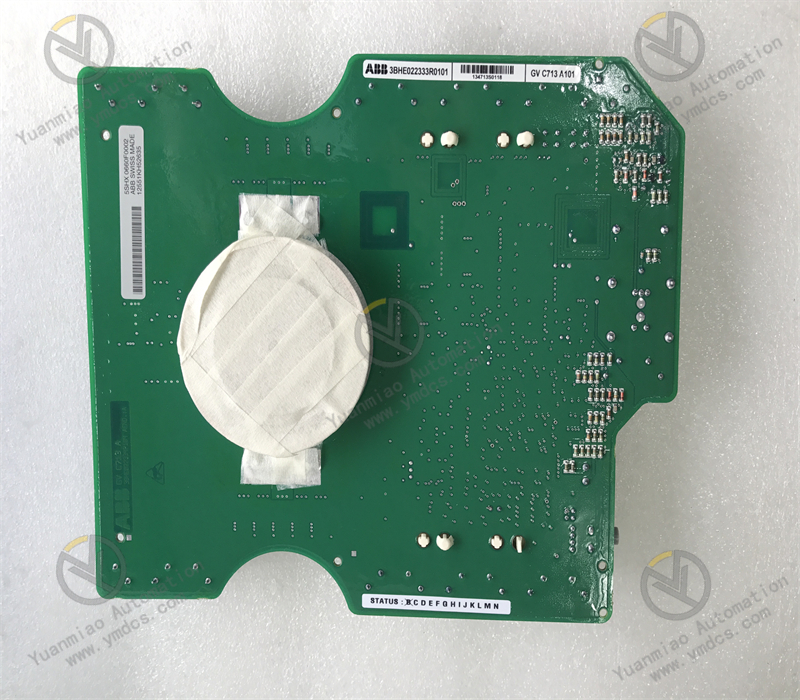

2. Matching Component: 3BHE022333R0101 Phase Drive/Control Board
2.1 Core Parameters
| Parameter | Specification | Description |
|---|---|---|
| Part Number | 3BHE022333R0101 | ABB original matching board |
| Type | Phase Module | For ACS6000 IGCT rectifier series |
| Power Supply | 24 V DC ±20% (Typ. 19.2–30 V DC) | Matched with module drive interface |
| Drive Capability | For 660 A class IGCT | Low-inductance gate drive, supports high-current switching |
| Sensing & Protection | Phase current sensing ±10 A; OC/OV/UV/OT/gate fault protection | Fast hardware-level response, ensures module safety |
| Communication & Isolation | 2-channel fiber isolation (50 V/channel rated) | High-voltage galvanic isolation, strong EMI immunity |
| Rated Isolation Voltage | 5 kV at phase sensing | Meets medium-high voltage system insulation requirements |
| Operating Temperature | -40℃ ~ +85℃ | Wide-temperature design for harsh industrial environments |
| Dimensions | Standard 3U board | Fits ACS6000 cabinet |
2.2 Core Functions
- Gate drive and triggering: Receives control commands via optical fiber, outputs low-inductance gate pulses to accurately turn on/off IGCT and ensure switching synchronism.
- Full-condition protection: Integrates hardware protections including overcurrent, overvoltage, undervoltage, overtemperature and gate fault. Responds to short-circuit faults within 3 µs, disables drive signal and protects power module.
- Phase current sampling: Samples phase current in real time (±10 A range), feeds back to control system for closed-loop regulation and fault diagnosis.
- High-voltage isolated communication: Transmits control and feedback signals via fiber isolation, avoids high-side interference and ensures stable system operation.
3. Key Features of Complete Solution
- Snubber-less integration: Module with built-in drive and TMR protection, board with precise drive and protection. No extra RC snubber circuit, reducing system cost and loss.
- High compatibility: Custom-designed for ACS6000 series, fully matched interfaces and control logic, plug-and-play, reducing commissioning time.
- Strong environmental adaptability: Module operating temperature -25℃ ~ +70℃ (case), board -40℃ ~ +85℃; press-pack structure is vibration-resistant, suitable for metallurgy, mining, wind power and other harsh sites.
- High performance and long service life: Low on-state voltage (≈2.0 V) and fast turn-off (≤1 µs) minimize losses, system efficiency >98%; double-sided cooling improves lifetime and reliability.
4. Typical Applications
- ABB ACS6000 medium-voltage inverters/rectifiers: 690 V–1.2 kV main circuit, for high-power drives such as rolling mills, fans, pumps, marine propulsion.
- Generator excitation systems: AC 800PEC excitation controller, for fast voltage regulation and fault protection.
- Grid and new energy equipment: Flexible AC Transmission Systems (FACTS), SVG/STATCOM, wind/PV converters, energy storage converters.
