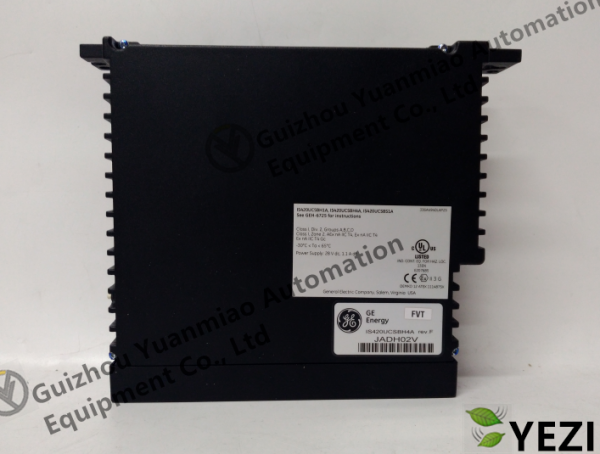

IS420UCSCH2A Controller modules in the Mark VIe control system series

IS420UCSCH2A Controller modules in the Mark VIe control system series

Product Features

• High-Performance Processing: Adopts a dual-core processor architecture, enabling efficient execution of complex control algorithms and data processing tasks, ensuring real-time performance and accuracy of the system.
• Reliable Operating System: Runs on the QNX Neutrino operating system, which offers excellent real-time performance and reliability.
• Powerful Communication Capabilities: Equipped with multiple Ethernet interfaces, supporting various industrial communication protocols such as Profinet and Modbus TCP/IP, enabling seamless integration with multiple devices.
• Intelligent Integration: Through integrated EFA technology, it can connect to GE’s Predix industrial cloud platform, realizing real-time data upload, storage, and analysis.
• Flexible Configuration: Supports multiple redundancy configurations such as Simplex, Duplex, and TMR. It can also flexibly expand I/O and communication capabilities according to requirements, and its modular design facilitates installation and maintenance.

Hardware Parameters

• Processor: May adopt the Intel EP80579 processor.
• Memory: Equipped with 4GB DDR3 – 1333 SDRAM, capable of processing large datasets and complex algorithms.

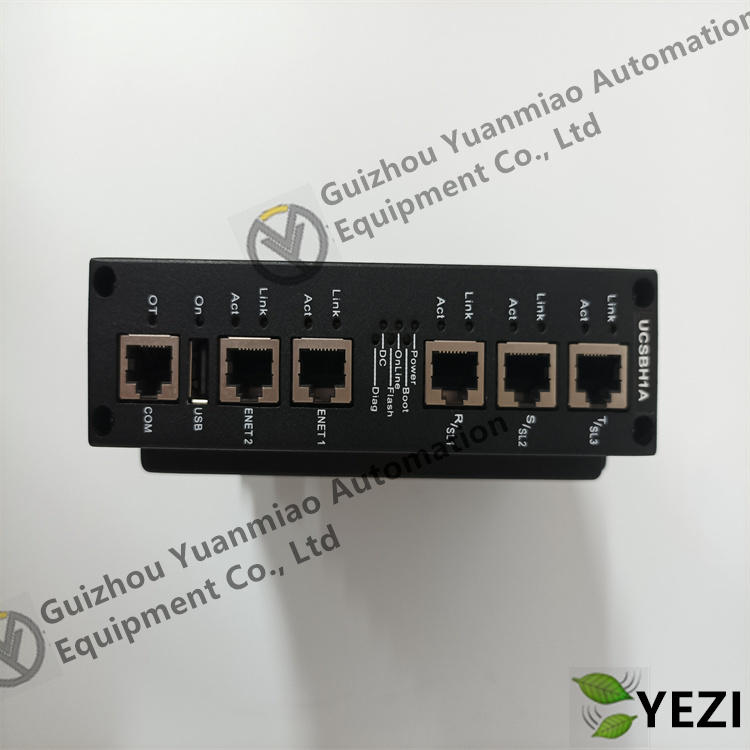

• Communication Interfaces:
  • 3 IONet ports (R/S/T) for communication with input/output modules, supporting Simplex, Duplex, and TMR.
  • 1 ENET 1 interface for EGD/UDH communication with ToolboxST PCs, HMIs, etc. It also supports Modbus TCP slave (read-only) and can perform black-channel communication with other Mark VIe safety controllers.
• Power Requirements: Typically 12V DC or 24V DC.
• Operating Temperature: Generally 0°C to 60°C.

Installation and Maintenance

• Installation: It is recommended to install it in a control cabinet with good ventilation, no dust, and no severe vibration, ensuring sufficient space for wiring and maintenance. Before wiring, disconnect the power supply and connect the cables correctly according to the wiring diagram. For redundant systems, connect multiple controllers and network devices according to the guidelines.
• Maintenance: Regularly check the ventilation and heat dissipation of the control cabinet and clean the dust to ensure firm cable connections and stable power supply. Use GE’s ControlST software for regular diagnostics to check the operating status of hardware and software, and perform firmware upgrades as needed. For redundant systems, regularly test the redundancy switching function.
