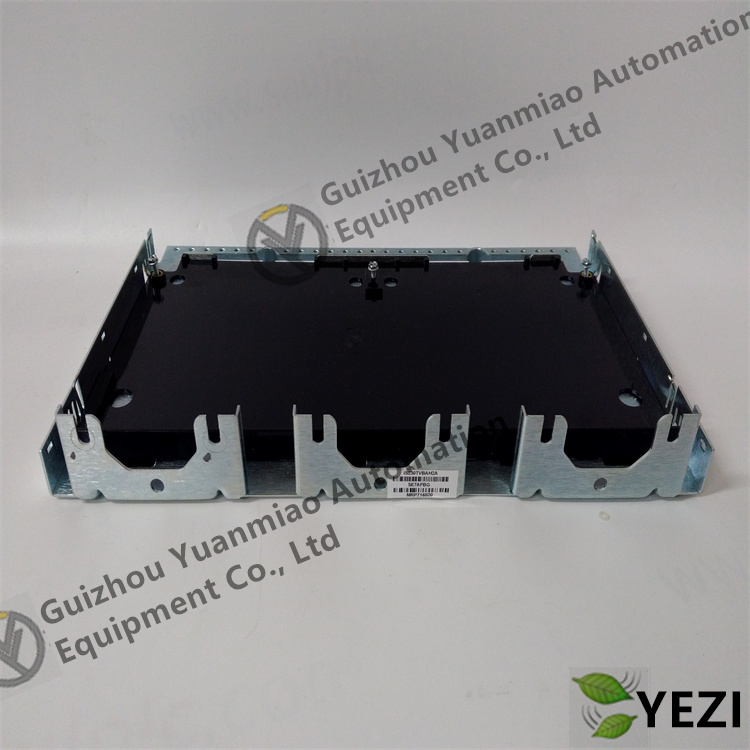

IS230TVBAH2A Controller
Attention: Due to the large number of products from our company, the pictures cannot match each other. Please contact me to confirm the actual product!
IS230TVBAH2A is a control module from General Electric (GE), and its detailed information is as follows:
Overview: It is a high-power dual power driver belonging to General Electric’s controller card series, commonly used in industrial automation control systems, with a size of 6U VME (9.23 × 6.3 inches).
Functional features:
Overcurrent protection function: When the voltage of input 1 is detected to be 7V, the module will determine that the circuit is short circuited and immediately output a shutdown signal through an optocoupler. The 5-terminal output of the insulated gate bipolar transistor (IGBT) will be set to a low level, making it in a negative bias state and reliably shut down to prevent the base of the IGBT from burning out and breakdown.
Stable driving function: Using the special driving module M57962AL, it can drive high current, high-power applications and achieve IGBT overcurrent and overvoltage protection. At the same time, the peripheral application circuit design includes resistors that limit the base current and base emitter limiters to ensure reliable conduction and turn off of the IGBT, avoiding accidental power on or breakdown. In addition, this module has a high operating frequency and fast response speed.
