IS200VTCCH1CBB Thermocouple input terminal board
Attention: Due to the large number of products from our company, the pictures cannot match each other. Please contact me to confirm the actual product!
IS200VTCCH1BBB is a thermocouple input terminal board produced by General Electric (GE) for Mark VI series control systems. Here is its detailed information:
Product Overview:
Part number: IS200VTCCH1BBB.
Product type: microprocessor expansion board, belonging to VME I/O board.
Series: Mark VI Series, this series is a flexible platform suitable for various applications, providing high-speed networked I/O for simplex, duplex, and triple redundant systems.
Technical specifications:
Input type: Acceptable E, J, K, S, T-type thermocouples and millivolt inputs ranging from -8mV to+45mV.
Input quantity: Up to 24 thermocouple inputs can be accepted.

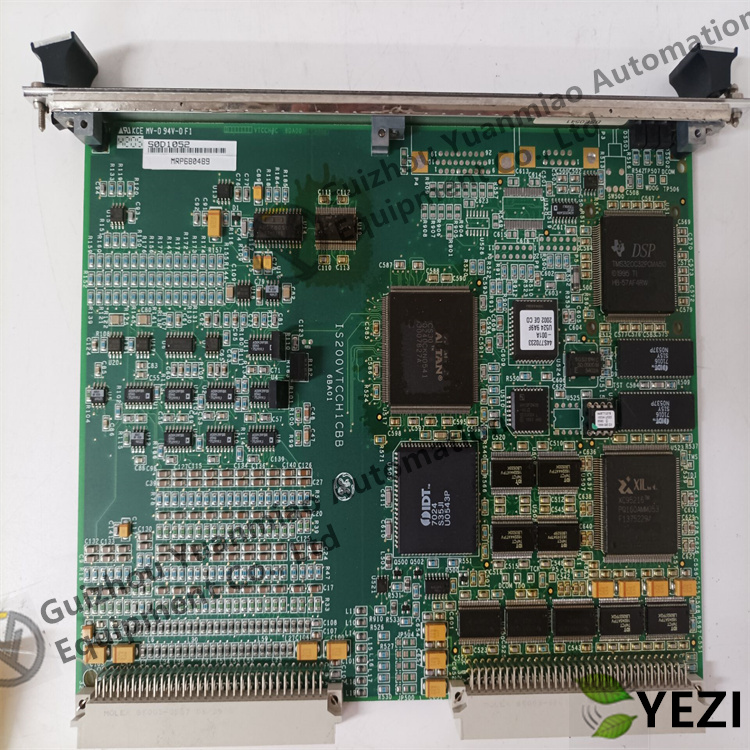

Appearance and Structure: It is a multi-layer printed circuit board (PCB) covered with surface mount devices (SMD) and connectors, with a detachable connector as part of the terminal block. The front panel includes two connectors and three LED indicator lights, with the GE logo and board ID. The circuit board has multiple integrated circuits, two backplane connectors, test points, relays, resistors, and various capacitors of different designs.
