IS200TVBAH2ACC Turbine control and protection system
Attention: Due to the large number of products from our company, the pictures cannot match each other. Please contact me to confirm the actual product!
IS200TVBAH2ACC is a key module of the Mark VIe control system under General Electric (GE), mainly used for turbine control and protection systems. Here is its detailed information:
Basic information
Brand: GE (General Electric)
Series: Mark VIe (Industrial Control Systems)
Model: IS200TVBAH2ACC
Product type: Vibration Monitoring Module
Functional positioning: Used for real-time monitoring of the vibration status of turbines to ensure safe operation of equipment.
Functional Features
High precision vibration monitoring
Supports multiple vibration sensor inputs (such as accelerometers and velocity sensors), allowing for simultaneous monitoring of multiple vibration points.
Real time analysis of vibration frequency, amplitude, and phase to identify abnormal vibration modes (such as imbalance, misalignment, bearing failure, etc.).

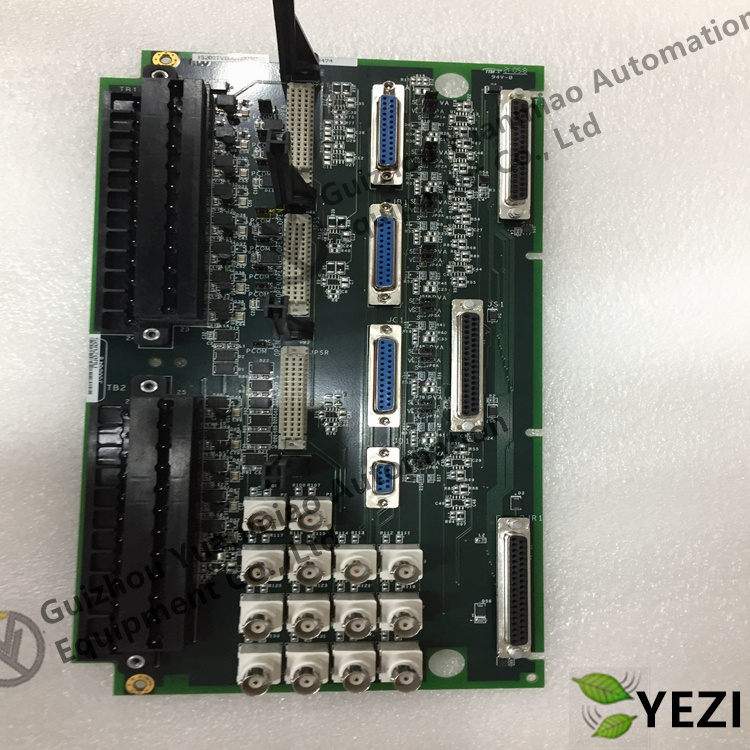

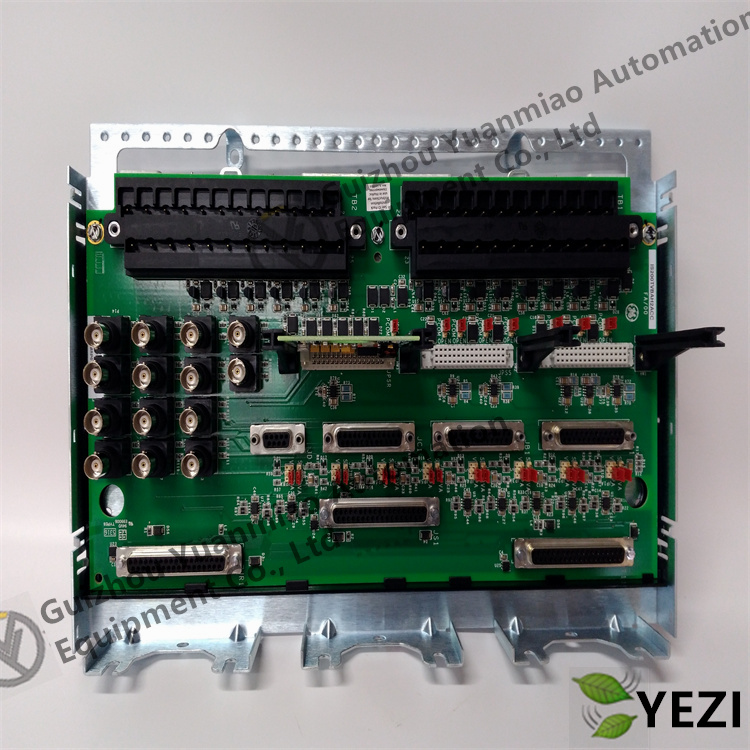

Component composition:
Contains multiple surface mount relays.
Using variable resistors, there are two transformers near the center of the board.
There are multiple connectors, including male and female D-shell connectors, plug connectors, and terminal blocks. The largest two terminal boards are equipped with screw mounted connectors and labeled with numbers; There are also two jumper switches that can change the circuit board circuit to accommodate simplex or TMR voting.
In addition, it also includes components such as capacitors, diodes, resistors, etc. Most components have reference labels, and the board is also labeled with codes to assist with wiring and placement.
