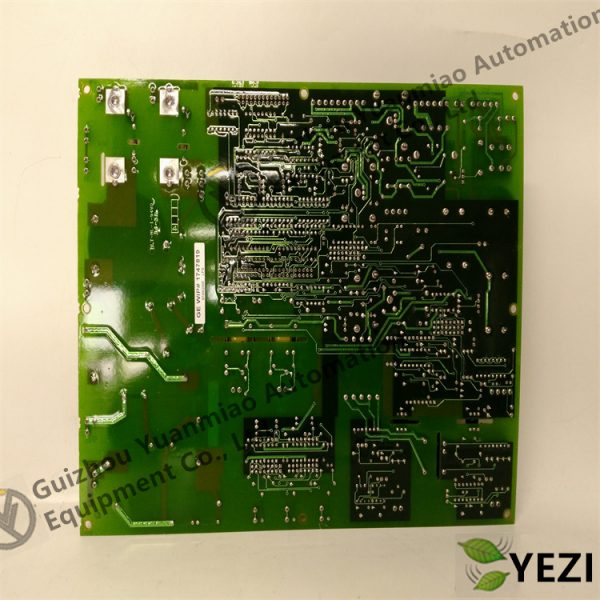

DS200TCPDG2BEC TCP/IP communication module
Attention: Due to the large number of products from our company, the pictures cannot match each other. Please contact me to confirm the actual product!
DS200TCPDG2BEC is a TCP/IP communication module belonging to General Electric (GE)’s Mark VIe series, primarily used in industrial control systems—especially in power generation, turbine control, and heavy-duty industrial applications—to enable network communication between the Mark VIe controller and other devices or systems. Below is a summary of key information based on available technical data:
The DS200TCPDG2BEC module serves as a critical network interface for the Mark VIe control system, providing high-speed Ethernet communication via the TCP/IP protocol. It facilitates data transmission between the controller and human-machine interfaces (HMIs), supervisory control and data acquisition (SCADA) systems, engineering workstations, or other third-party devices. This module supports real-time data exchange, configuration management, and remote monitoring, ensuring seamless integration in complex industrial networks.
- Power Supply:
- Input Voltage: Typically 24VDC (supplied by the Mark VIe controller chassis).
- Power Consumption: Approximately 5W (varies with communication load).
- Communication Interfaces:
- 2 x 10/100BASE-TX Ethernet ports (RJ45 connectors) for TCP/IP communication.
- Supports full-duplex/half-duplex modes, auto-negotiation of speed and duplex.
- Protocol Support:
- TCP/IP, UDP, FTP, Telnet, and SNMP (for network management).
- Compatibility with GE’s proprietary protocols (e.g., Genius™, SRTP) for integration with Mark VIe ecosystem components.
- Data Transfer Rate: Up to 100Mbps (Ethernet).
- Operating Environment:
- Temperature: 0°C to 60°C (ambient).
- Humidity: 5% to 95% (non-condensing).
- Vibration: Compliant with IEC 60068-2-6 standards.
- Mechanical Specifications:
- Dimensions: Compatible with Mark VIe chassis (approx. 100mm × 80mm × 30mm, varies by mounting).
- Weight: Approximately 0.2kg.
- Mounting: Installed in dedicated slots of the Mark VIe controller chassis.
- Dual Ethernet Ports: Supports redundant network configurations (e.g., primary/secondary networks) to enhance system reliability and prevent communication failures.
- Real-Time Communication: Optimized for low-latency data transmission, critical for time-sensitive control applications (e.g., turbine speed regulation).
- Network Security: Includes basic security features such as IP filtering and port locking to restrict unauthorized access.
- Diagnostic Capabilities: Monitors network status, link integrity, and data transmission errors, with diagnostic data accessible via the Mark VIe HMI or engineering software.
- Hot-Swappable: Designed for hot swapping in the Mark VIe chassis, allowing module replacement without powering down the system, minimizing downtime.
- Backward Compatibility: Works with legacy Mark VI systems and integrates with GE’s PlantPAx or other SCADA platforms.
