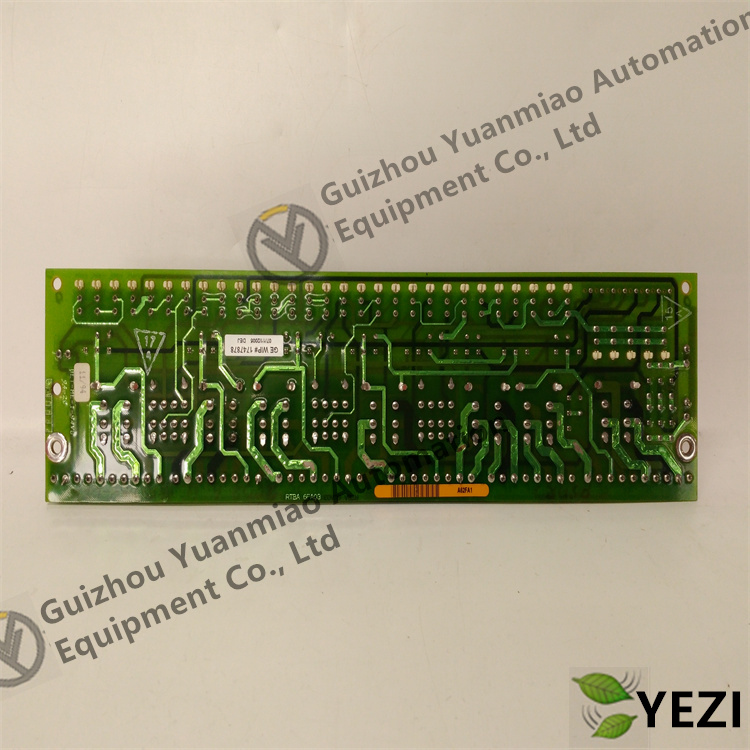

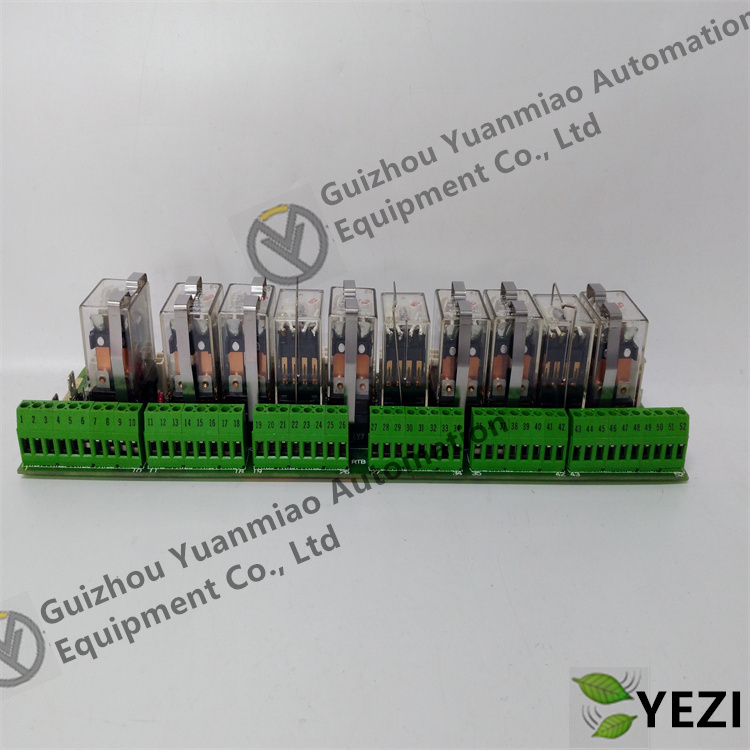

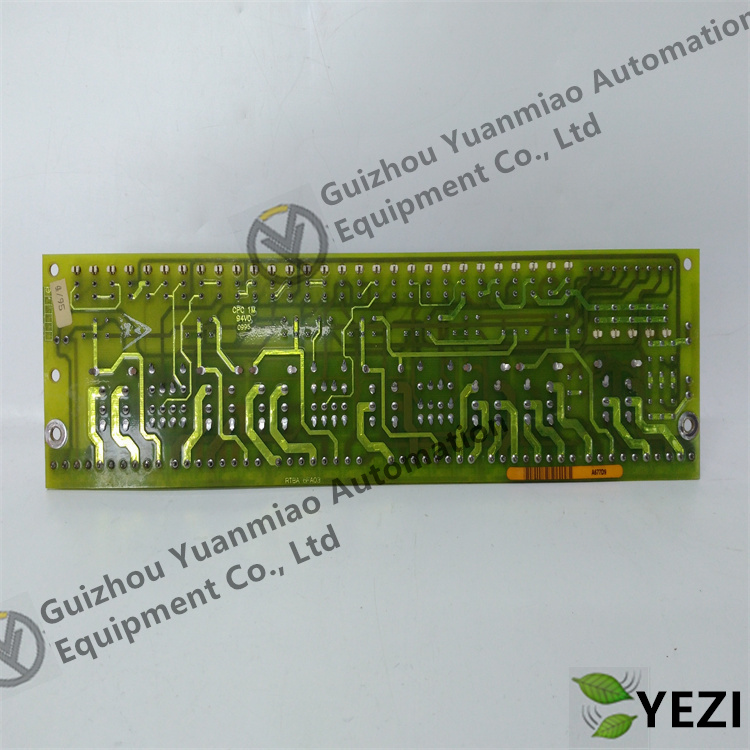

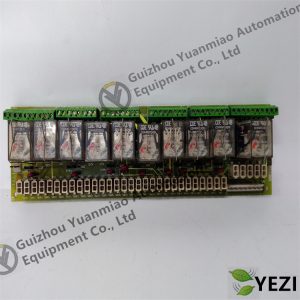

DS200RTBAG3AHC Relay terminal board
Attention: Due to the large number of products from our company, the pictures cannot match each other. Please contact me to confirm the actual product!
DS200RTBAG3AHC is a relay terminal board designed by General Electric (GE) for the Mark V turbine control system series. The following is its detailed information:
Basic information
Part number: DS200RTBAG3AHC
Series: Mark V DS200
Manufacturer: General Electric
Product Type: Relay Terminal Board
Functional Features

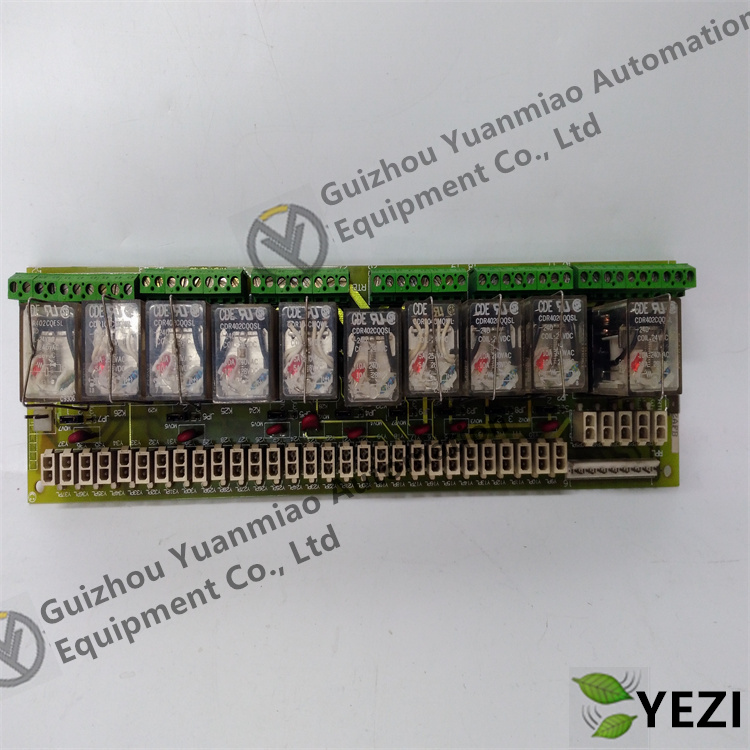

Relay configuration: Includes 10 relays (K20-K29), of which K20-K26 are 115V AC coils and 10A DPDT (double pole double throw) contacts; K27-K29 are 115V AC coils with 1A 4PDT (four pole double throw) contacts. These relays can be directly driven by pilot relays or remotely driven by users.
Terminal situation: There are 52 terminal points used for I/O function, for example, for the C-type contact of relay K20, there are dedicated terminals for normally open, common, and normally closed positions.
Power Connection: There are two plug-in connectors, CPH (positive power connector) and CPN (negative power connector), which provide control power for pluggable circuits such as C1PL to C5PL and Y9PL to Y37PL.
Function in the system: It is a part of the Mark V turbine control system, used to manage and control various turbine driven automation systems, such as wind, steam, and gas turbine control. It may also be a part of the protection core and main trip circuit, with related trip relays and auxiliary control output functions.
