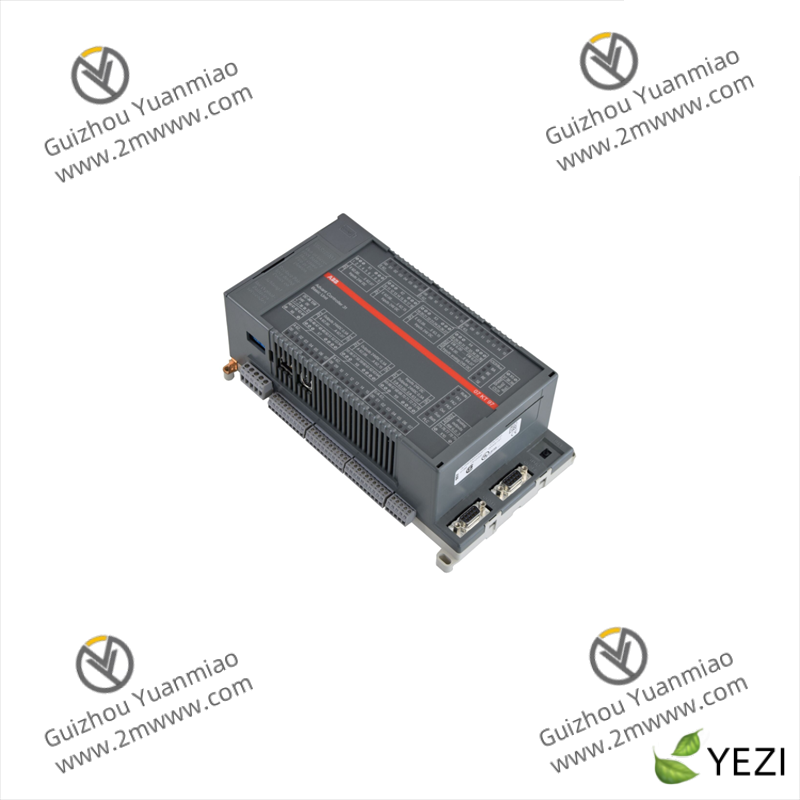

ABB DSDX453 Digital I/O Module for Industrial Automation

ABB DSDX453 Digital I/O Module for Industrial Automation

The ABB DSDX453 Digital I/O Module serves as a robust workhorse for industrial control systems, handling digital signal processing in manufacturing and process automation. Engineers often reach for this module when they need rock-solid reliability for machine interlocks, sensor monitoring, or valve control – think of it as the nervous system component that keeps production lines humming without unexpected hiccups.

Product Type: Digital I/O Module

Manufacturer: ABB

Model: DSDX453

Weight: 1.5 kg

Input Channels: 16 dry contact

Output Channels: 16 solid-state

Operating Voltage: 24V DC ±15%

Communication: PROFIBUS-DP v1

Temp Range: -25°C to +60°C

Protection: IP20 (front panel)

Dimensions: 60 x 100 x 80 mm

In automotive paint shops where humidity plays havoc with electronics, or food processing plants with frequent washdowns, this module keeps performing thanks to its conformal-coated circuitry. It’s commonly found in ABB AC800M control cabinets alongside PM866 processors and PP865 communication modules. Users in chemical processing facilities swear by its performance when managing solenoid valve banks for reactor vessel control – one technician joked that it’s “the only thing that survives our ammonia leaks.”

What sets this module apart isn’t just the dual-color LED channel indicators that make troubleshooting a breeze. The real magic happens when the PROFIBUS-DP fails – the module’s last-state output holding keeps critical processes from crashing until communications restore. Unlike cheaper alternatives that require complete bus scans, its asynchronous update mode lets critical channels refresh independently. Pair that with ABB’s clever bus-powered design (no separate power supply needed) and you’ve got a system that keeps going when others would fold under pressure.

This isn’t just another I/O box – it’s a survivalist in electronic form. The 6ms scan time won’t win speed contests, but when your production line needs to keep running through brownouts and network storms, you’ll appreciate its stubborn refusal to quit. The tool-less DIN rail mount saves installation time, though watch your backplane slot spacing – leave at least 10mm clearance for airflow. Honestly, for under $1200, you’d struggle to find a more dependable digital interface in industrial automation circles.
