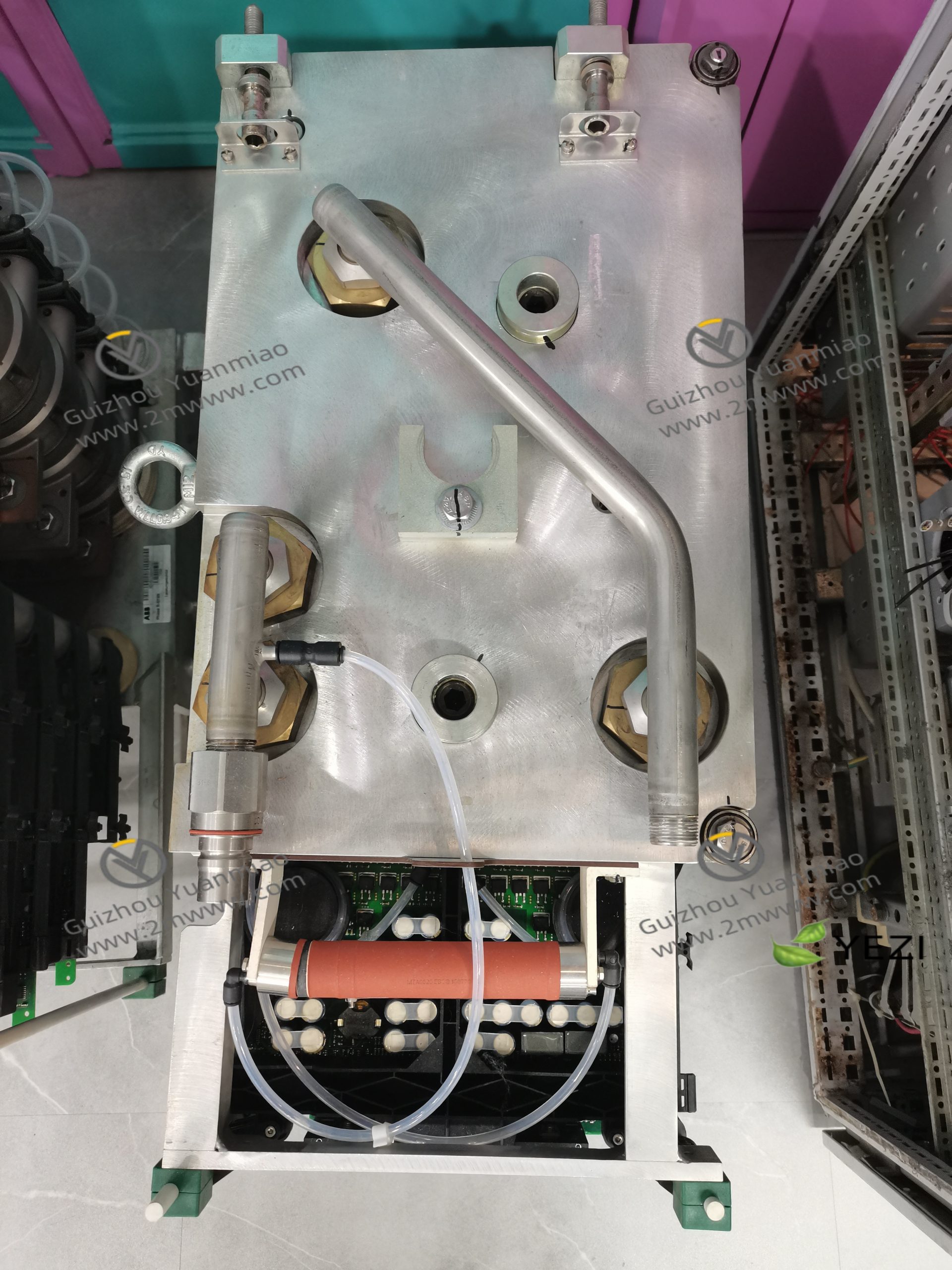

You may be wondering about ABB’s S-093H 3BHB030478R0009 phase module. Here is an introduction to the product overview, functional features, and application areas:
product overview
Manufacturer: ABB is a globally leading power and automation technology company headquartered in Switzerland, with extensive business and advanced technology in multiple fields such as power, industrial automation, and robotics.
Product type: S-093H 3BHB030478R0009 belongs to the phase module, which is used to process and measure the phase information of signals.
Country of Origin: The product is originally from Sweden, but some production processes may take place in other countries such as Poland.
Functional Features
Hot swappable function: allows the power supply unit to be replaced during operation without interrupting the main voltage, facilitating equipment maintenance and upgrades, and reducing system downtime.
Redundancy design: It has power and communication redundancy functions, which improves the reliability and stability of the system. Even in the event of component failure, the system can continue to operate normally.
Hot configuration function: Hot configuration can be performed during operation, and module parameters and settings can be adjusted without stopping the system, increasing the flexibility and scalability of the system.
Diagnostic function: Through FDT/DTM (Field Device Tool/Device Type Manager), excellent configuration and diagnostic functions are provided, which can quickly and accurately locate faults and problems in the system, simplify maintenance work, and reduce maintenance costs.
Communication standard: Using the PROFIBUS DP standard to communicate with the control system layer ensures compatibility and interoperability with other devices and systems, making it easy to integrate into various automation control systems.
Protection level: Using G3 coating, all components are protected and can withstand harsh environmental conditions such as moisture, dust, corrosion, etc., suitable for various industrial environments.
application area
Communication system: used for modulating and demodulating signals, implementing communication technologies such as phase modulation (PM) or phase keying (PSK), and transmitting and encoding information by controlling the phase of the signal.
Audio processing: can be used to adjust the phase of audio signals to achieve sound localization, mixing, and effect processing. For example, in a sound system, adjusting the phase can enhance the stereo effect and spatial sense.
Power system: used to measure and control the phase relationship between current and voltage, which helps with power factor correction, energy metering, and power system fault detection, improving the efficiency and stability of the power system.
Mechanical condition monitoring: used to measure the key phase signals of rotating machinery (such as turbines, compressors, generators, etc.). By monitoring the key phases, the speed, steering, and phase information of the machine can be obtained for fault diagnosis, vibration analysis, and control, ensuring the normal operation of mechanical equipment.
